EasyClean round grease separator

free, NS 10, Mix

PDF product data sheet

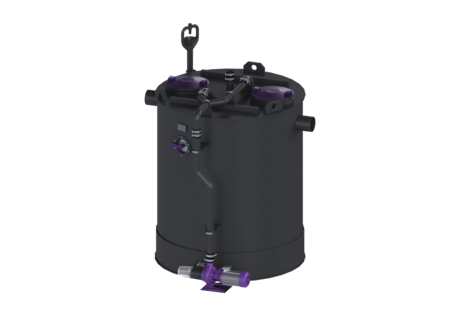

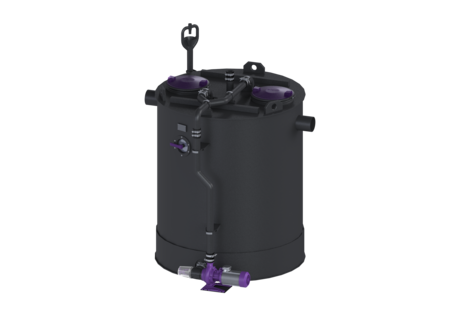

KESSEL EasyClean round grease separator, nominal size 10, disposal Mix, free-standing installation, type of disposal manual, tightness odour-tight

  • Simple control
  • Low-maintenance operation
  • Odour-reduced disposal with the tank closed
Item no. 93010.05/DS
Price group 60

    EasyClean round grease separator free, NS 10, Mix
    The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and is manufactured without the need for metallic internal structural components. The collection tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has sloped sides in the base to promote fast and efficient disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. The innovative Shredder-Mix System with integrated macerating system homogenises and circulates the tank contents. Cleaning is carried out via an exterior pump which can be disconnected from the tank by a shut-off valve. A direct disposal pipe socket is available for odour-neutral manual disposal. 20 year polyethylene warranty. Variant Shut-off valve: yes Disposal variant: Mix Shredder-Mix-System: yes Sludge bucket: no Nominal size (NS): 10 SonicControl: no Type of disposal: manual Load-bearing capacity (DIN 19901): F3 General characteristics Material: PE Standard: EN 1825: 2004 Installation situation: free-standing installation Dimensions Net weight: 710 kg Gross weight: 710 kg Set-up area, length: 1900 mm Set-up area, width: 1690 mm Set-up area, height: 1910 mm Required access area, length: 1900 mm Required access area, width: 1690 mm Required access area, height: 1910 mm Tank/drain body Nominal pressure (PN): 10 Pressure pipe connection (DN): 65 Pressure pipe connection (OD): 75 mm Distance pipe bottom outlet to tank bottom: 1500 mm Distance pipe bottom inlet to tank bottom: 1570 mm Outlet nominal size (OD): 160 mm Outlet nominal size (DN): 150 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: black Locking: Quick-release closure Tightness: odour-tight Wastewater contents Separator contents: 1500 l Contents of sludge trap: 1000 l Control Control unit: no
      Title Item no.
      Title Item no.
      Title Item no.
    72300 Connect Pro module LTE f. control unit w. Connect Pro interface 72300 Show
    915871 Sampling system DN 100/150, Horizontal outlet 915871 Show
    917821 Layer thickness measuring device SonicControl, for grease separators 917821 Show
    917871 Cable extension 10 m, for SonicControl grease separator 917871 Show
    917872 Cable extension 20 m, for SonicControl grease separator 917872 Show
    917873 Cable extension 30 m, for SonicControl grease separator 917873 Show
      Title Item no.
    • Material (material): PE
    • Cover material (abdeckung_material): Polymer
    • Installation situation (einbausituation): free-standing installation
    • Shredder-Mix-System (schredder_mix_system): yes
    • Nominal size (NS) (nenngroesse): 10
    • Sludge bucket (schauglas): no
