Grease separat. EasyClean Modular

free, NS 4, round, Direct disposal

Back to table of variants PDF product data sheet

KESSEL Grease separat. EasyClean Modular, disposal Direct, nominal size 4,00, free-standing installation, type of disposal manual, tightness odour-tight, locking Quick-release closure, two-piece chamber, Separator capacity 560 l

  • Ideal where access is tight
  • can be divided into 3 parts for insertion, for an insertion opening of max. 66 cm
  • Direct disposal with the tank closed
Item no. 93004.00/D1-R
GTIN 4026092108284
Price group 60

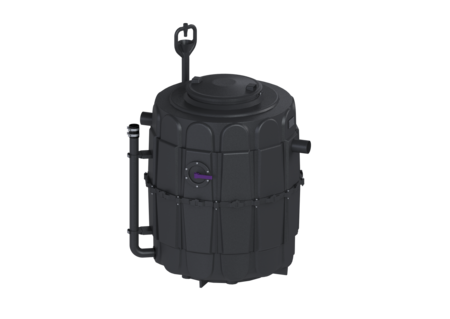

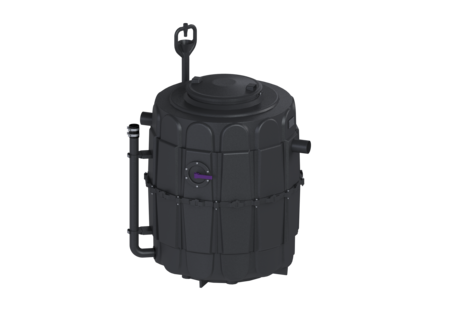

    Grease separat. EasyClean Modular free, NS 4, round, Direct disposal
    The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. Thanks to the modular design, the separator can be inserted even where access is extremely tight. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap. A service access cover with odour-tight cover and quick-release closures makes easy access possible for cleaning and maintenance work. A direct disposal pipe socket is available for odour-reduced manual disposal. 20 year polyethylene warranty. Variant Chamber system: two-piece chamber Disposal variant: Direct Nominal size (NS): 4,00 Disposal system: Disposal connection Type of disposal: manual General characteristics Material: PE Standard: EN 1825: 2004 Installation situation: free-standing installation Delivery state: Installation-ready (connection parts must be connected on site) Scope of delivery: Storz-B coupling R 2 1/2" for disposal vehicle connection Dimensions Net weight: 100 kg Gross weight: 120 kg Set-up area, height: 1620 mm Required access area, length: 1400 mm Required access area, width: 1300 mm Required access area, height: 790 mm Packaging dimension: length: 1500 mm Packaging dimension: width: 1500 mm Packaging dimension: height: 1850 mm Tank/drain body Outlet nominal size (DN): 100 mm Inlet nominal size (DN): 100 mm Coverage features Type of cover: Cover Locking: Quick-release closure Tightness: odour-tight Wastewater contents Separator contents: 560 l Contents of sludge trap: 420 l
      Title Item no.
      Title Item no.
      Title Item no.
    915870 Sampling system DN 100/150, Vertical outlet 915870 Show
    915871 Sampling system DN 100/150, Horizontal outlet 915871 Show
      Title Item no.
    • Material (material): PE
    • Disposal system (entsorgungseinrichtung): Disposal connection
    • Installation situation (einbausituation): free-standing installation
    • Nominal size (NS) (nenngroesse): 4
