Grease separat. EasyClean Modular

free, NS 4, Direct, 3-part, TS

93004-D1-R2-TS
PDF product data sheet

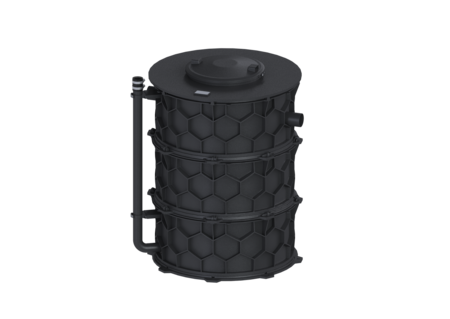

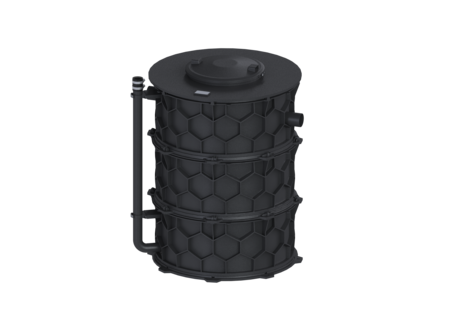

KESSEL Grease separat. EasyClean Modular, disposal Direct, nominal size 4,00, free-standing installation, type of disposal manual, tightness odour-tight, locking Quick-release closure, three-piece chamber, Separator capacity 560 l

  • Ideal where access is tight
  • can be divided into 3 parts for insertion, for an insertion opening of max. 66 cm
  • Direct disposal with the tank closed
Item no. 93004-D1-R2-TS
GTIN 4026092104057
Price group 60

    Grease separat. EasyClean Modular free, NS 4, Direct, 3-part, TS
    The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. Thanks to the modular design, the separator can be inserted even where access is extremely tight. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap. A service access cover with odour-tight cover and quick-release closures makes easy access possible for cleaning and maintenance work. A direct disposal pipe socket is available for odour-reduced manual disposal. 20 year polyethylene warranty. Variant Chamber system: three-piece chamber Disposal variant: Direct Shredder-Mix-System: no Sludge bucket: no Nominal size (NS): 4,00 SonicControl: no Disposal system: Disposal connection Refill inlet in accordance with DIN 1988: no Type of disposal: manual General characteristics Material: PE Standard: EN 1825: 2004, DIN 4040-100 Installation situation: free-standing installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 120 kg Gross weight: 138 kg Height centre section: 500 mm Height tank bottom up to centre section: 550 mm Height centre section to top edge of tank: 580 mm Required access area, length: 1240 mm Required access area, width: 1683 mm Required access area, height: 1300 mm Packaging dimension: length: 1300 mm Packaging dimension: width: 1240 mm Packaging dimension: height: 1633 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 1175 mm Distance pipe bottom inlet to tank bottom: 1245 mm Outlet nominal size (OD): 110 mm Outlet nominal size (DN): 100 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: black Locking: Quick-release closure Tightness: odour-tight Wastewater contents Separator contents: 560 l Contents of sludge trap: 400 l Storage quantity of grease: 160 l Control Control unit: no
      Title Item no.
      Title Item no.
      Title Item no.
    72300 Connect Pro module LTE f. control unit w. Connect Pro interface 72300 Show
    915871 Sampling system DN 100/150, Horizontal outlet 915871 Show
    917821 Layer thickness measuring device SonicControl, for grease separators 917821 Show
    917871 Cable extension 10 m, for SonicControl grease separator 917871 Show
    917872 Cable extension 20 m, for SonicControl grease separator 917872 Show
    917873 Cable extension 30 m, for SonicControl grease separator 917873 Show
      Title Item no.
    • Material (material): PE
    • Cover material (abdeckung_material): Polymer
    • Disposal system (entsorgungseinrichtung): Disposal connection
    • Installation situation (einbausituation): free-standing installation
    • Nominal size (NS) (nenngroesse): 4
