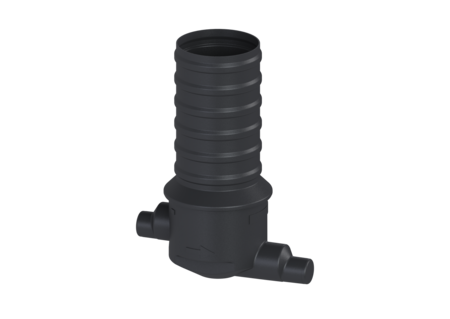

Sampling chamber
LW 400, DN 100/150, class D, ventilated
Sampling chamber LW 400, DN 100/150, class A, ventilated for separator systems, for underground installation, made of polyethylene, draining, watertight, resistant to aggressive waste water. Upper section made of polymer for continuous adjustable height and level adjustment. Cover plate made of polymer in accordance with EN 124, including ventilation. Nominal size: DN 100/150 (OD 110/160 mm) Installation depth inlet: 900 to 1300 mm (can be shortened by sawing to 400 mm)
| Item no. | 916880A |
|---|---|
| Price group | 60 |
Sampling chamber LW 400, DN 100/150, class D, ventilated

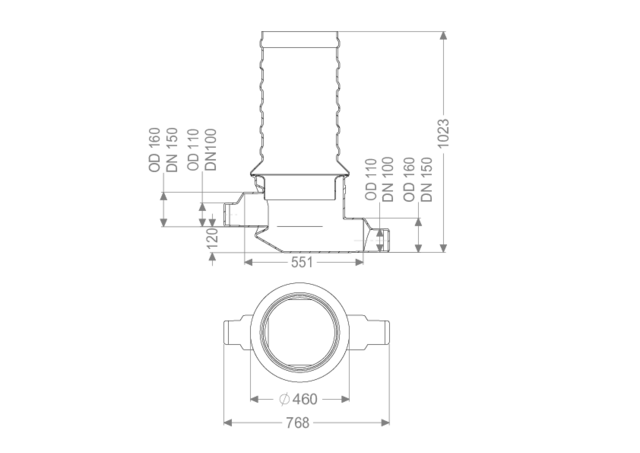

Sampling chamber LW 400, DN 100/150, class A, ventilated for separator systems, for underground installation, made of polyethylene, draining, watertight, resistant to aggressive waste water. Upper section made of polymer for continuous adjustable height and level adjustment. Cover plate made of polymer in accordance with EN 124, including ventilation. Nominal size: DN 100/150 (OD 110/160 mm) Installation depth inlet: 900 to 1300 mm (can be shortened by sawing to 400 mm) Variant Direction of flow: straight Chamber system: LW 400 Dimensions Net weight: 14 kg Gross weight: 22 kg Vertical drop between inlet and outlet: 120 mm Installation depth: 400 - 1300 mm Packaging dimension: length: 700 mm Packaging dimension: width: 800 mm Packaging dimension: height: 1270 mm Coverage features Type of cover: surface water resistant Load class: A 15 (EN 124)
