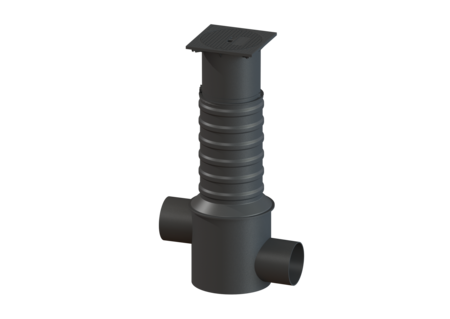

Sampling chamber
DN 250, Class B
Sampling chamber LW 450 for separators, for underground installation, draining, watertight, resistant to aggressive wastewater. Upper section made of polymer for continuous adjustable height and level adjustment. Chamber system: LW 450 Flow direction: straight Inlet installation depth: 950 to 1300 mm (can be shortened to 450 mm by sawing)
| Item no. | 915884B |
|---|---|
| GTIN | 4026092103890 |
| Price group | 60 |
Sampling chamber DN 250, Class B
Sampling chamber LW 450 for separators, for underground installation, draining, watertight, resistant to aggressive wastewater. Upper section made of polymer for continuous adjustable height and level adjustment. Chamber system: LW 450 Flow direction: straight Inlet installation depth: 950 to 1300 mm (can be shortened to 450 mm by sawing) General characteristics Material: PE Nominal size (DN): 250 Outer diameter (OD): 260 mm ATEX: no Dimensions Net weight: 15 kg Gross weight: 15 kg Vertical drop between inlet and outlet: 160 mm Installation depth: 950 - 1300 mm Packaging dimension: length: 700 mm Packaging dimension: width: 800 mm Packaging dimension: height: 1200 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Load class: B 125 (EN 124) Tightness: odour-tight and surface water resistant
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Nominal size (DN) (nennweite):
250
- Material (material):
PE
