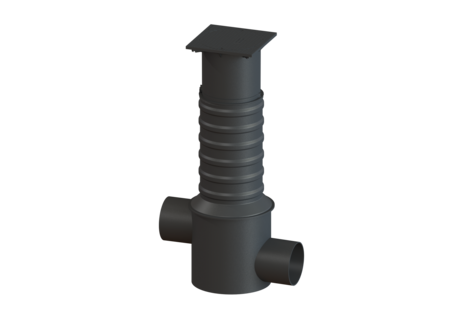

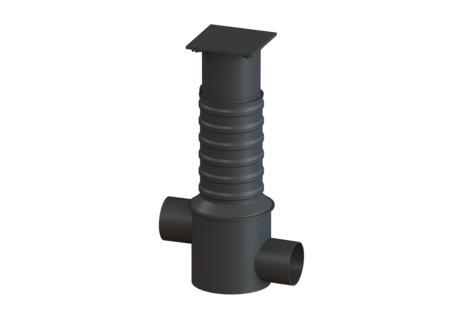

Sampling chamber

DN 150, Load class A

915882A
PDF product data sheet

Sampling chamber LW 450 for separators, for underground installation, draining, watertight, resistant to aggressive wastewater. Minimum installation depth can be achieved by sawing to required length. Flow direction: straight

Item no. 915882A
GTIN 4026092048511
Price group 60

    Sampling chamber DN 150, Load class A
    Sampling chamber LW 450 for separators, for underground installation, draining, watertight, resistant to aggressive wastewater. Minimum installation depth can be achieved by sawing to required length. Flow direction: straight General characteristics Colour: black Material: PE ATEX: no Dimensions Net weight: 15 kg Gross weight: 15 kg Vertical drop between inlet and outlet: 160 mm Installation depth: 950 - 1300 mm Type of height adjustability: vertically adjustable upper section Length: 730 mm Packaging dimension: length: 700 mm Packaging dimension: width: 800 mm Packaging dimension: height: 1200 mm Tank/drain body Distance pipe bottom inlet to tank bottom: 205 mm Outlet nominal size (OD): 160 mm Outlet nominal size (DN): 150 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 mm Clear width of tank (LW): 450 mm Coverage features Type of cover: Cover plate Cover material: Polymer Colour of cover: black Load class: A 15 (EN 124) Tightness: odour-tight and surface water resistant
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    680312 Cover plate Class A, with seal 680312 Show
    850134 Slotted cover round, d: 362 mm, Polymer 850134 Show
    • Material (material): PE
    • Cover material (abdeckung_material): Polymer
