Pump system Aquapump Retrofit

Duo, STZ 3700, Level sensor

PDF product data sheet

KESSEL Pump system Aquapump Retrofit Duo, wastewater for wastewater with and without sewage, installation in on-site collecting tank, with 2 submersible STZ 3700 pumps, 400 V, pressure pipe connection DN 63, Backflow preventer integrated

    Item no. 8744014
    GTIN 4026092103500
    Price group 60

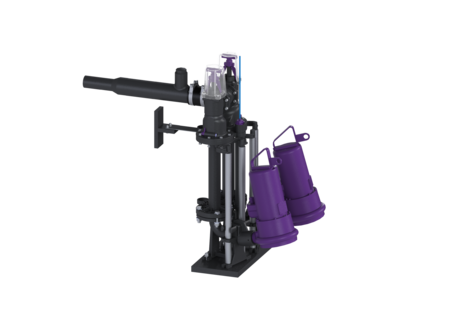

      Pump system Aquapump Retrofit Duo, STZ 3700, Level sensor
      Twin pump system, for installation in an on-site chamber module. Required minimum diameter of the on-site chamber: 1000 mm Variant Type of system: duo pump Shut-off valve: yes Installation: Wet installation Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: vertical (special version, on request), horizontal (standard version) General characteristics Standard: EN 12050-1 Type of wastewater: for wastewater with and without sewage Installation situation: installation in on-site collecting tank System type: Duo Dimensions Net weight: 149,6 kg Gross weight: 149,6 kg Packaging dimension: length: 1232 mm Packaging dimension: width: 618 mm Packaging dimension: height: 1062 mm Tank/drain body Pressure pipe connection (DN): 63 Pressure pipe connection (OD): 50 mm Pumping device Pump: STZ 3700 Number of pumps: 2 Connection type: coded plug Operating voltage: 400 Mains frequency: 50 Hz Rated current: 6,4 A Length of mains cable for pump: 10 m Protection class: I Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 28 m³/h Max. pumping height: 35 m Speed: 2900 U/min Power P1: 3,7 kW Power P2: 3,1 kW Operating mode: S1 Type of pump connection cable: H07RN8-F 6G 1.5 mm² Impeller type: Macerator Type of fuse required (electrical protection): 3 x C 63 A Control Control unit: Comfort Alarm sensor: Level sensor Level measurement instrument: Level sensor Type of level measurement: hydrostatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Type of fuse required (electrical protection): 3 x C 63 A Rated current: 6,4 A
        Title Item no.
        Title Item no.
        Title Item no.
        Title Item no.
      • Control unit (schaltgeraet): Comfort
      • Type of wastewater (abwasserart_de): for wastewater with and without sewage
      • Alarm sensor (alarmgeber): Level sensor
      • Pump (pumpe): STZ 3700
      • Impeller type (laufrad_typ): Macerator
