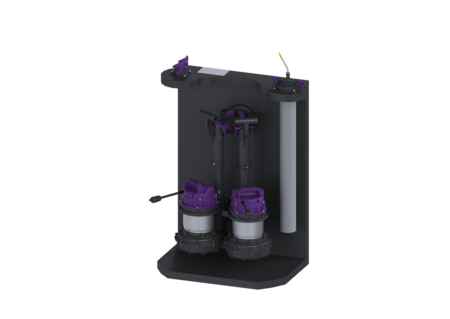

Pump system Aquapump Retrofit

Duo, GTF 1250, submersible pres. switch

8744006
8744006
PDF product data sheet

KESSEL Pump system Aquapump Retrofit Duo, wastewater without sewage, installation in on-site collecting tank, with 2 submersible pumps, 230 V, delivery rate 20 m³/h, Backflow preventer integrated, alarm generator with optical probe

    Item no. 8744006
    GTIN 4026092103364
    Price group 60

      Pump system Aquapump Retrofit Duo, GTF 1250, submersible pres. switch
      The pump system for installation in existing collection tanks for wastewater without sewage is equipped with two submersible pumps, a backflow preventer and a manual locking device. The polymer profile (PE) is used to mount and fix the pumping station. Quick-release closures enable easy removal of the pumps. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. Variant Type of system: duo pump Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: installation in on-site collecting tank Delivery state: Modular set for assembly on site System type: Duo ATEX: no Dimensions Net weight: 27 kg Gross weight: 27 kg Packaging dimension: length: 800 mm Packaging dimension: width: 700 mm Packaging dimension: height: 875 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Pumping device Number of pumps: 2 Weight, pump: 10 kg Connection type: coded plug Operating voltage: 230 Mains frequency: 50 Hz Rated current: 5,4 A Length of mains cable for pump: 10 m Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 20 m³/h Max. pumping height: 11 m Speed: 2700 U/min Power P1: 1,3 kW Power P2: 0,8 kW Operating mode: S1 Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Type of fuse required (electrical protection): C 16 A Control Control unit: Comfort Alarm sensor: optical probe Level measurement instrument: Submersible pressure switch Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Type of fuse required (electrical protection): C 16 A Rated current: 5,4 A
        Title Item no.
        Title Item no.
        Title Item no.
        Title Item no.
      • Control unit (schaltgeraet): Comfort
      • Type of wastewater (abwasserart_de): without sewage
      • Alarm sensor (alarmgeber): optical probe
      • (pumpe):
      • Impeller type (laufrad_typ): Multi-vane impeller
