Pump system Aquapump Retrofit

Duo, GTF 600, Floater

8744001
8744001
PDF product data sheet

KESSEL Pump system Aquapump Retrofit Duo, wastewater without sewage, installation in on-site collecting tank, with 2 submersible GTF 600 pumps, alarm generator with Float switch, 230 V, delivery rate 12 m³/h, Backflow preventer integrated

    Item no. 8744001
    GTIN 4026092103319
    Price group 60

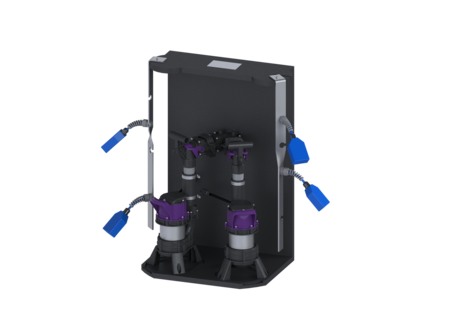

      Pump system Aquapump Retrofit Duo, GTF 600, Floater
      The pump system for installation in existing collection tanks for wastewater without sewage is equipped with two submersible pumps, a backflow preventer and a manual locking device. The polymer profile (PE) is used to mount and fix the pumping station. Quick-release closures enable easy removal of the pumps. The station is controlled with a float switch by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. Variant Type of system: duo pump Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: installation in on-site collecting tank Delivery state: Modular set for assembly on site System type: Duo Dimensions Net weight: 26 kg Gross weight: 26 kg Packaging dimension: length: 654 mm Packaging dimension: width: 900 mm Packaging dimension: height: 745 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Pumping device Pump: GTF 600 Number of pumps: 2 Weight, pump: 6 kg Connection type: Schuko (earthed contact) 2-pin Operating voltage: 230 Mains frequency: 50 Hz Rated current: 2,9 A Length of mains cable for pump: 10 m Protection class: I Insulation class: F Cos phi - power factor: 0,92 Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 12 m³/h Max. pumping height: 8 m Speed: 2750 U/min Power P1: 0,65 kW Power P2: 0,4 kW Operating mode: S1 Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Type of fuse required (electrical protection): C 16 A Control Control unit: Comfort Motor protection switch: yes Alarm sensor: Float switch Level measurement instrument: Float switch Type of level measurement: mechanical Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Type of fuse required (electrical protection): C 16 A Rated current: 2,9 A
        Title Item no.
        Title Item no.
        Title Item no.
        Title Item no.
      • Control unit (schaltgeraet): Comfort
      • Type of wastewater (abwasserart_de): without sewage
      • Alarm sensor (alarmgeber): Float switch
      • Pump (pumpe): GTF 600
      • Impeller type (laufrad_typ): Multi-vane impeller
