Pumping station Aquapump XL
Tronic, SPF 1500-S3, D0

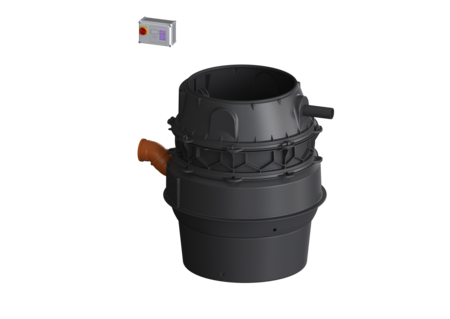

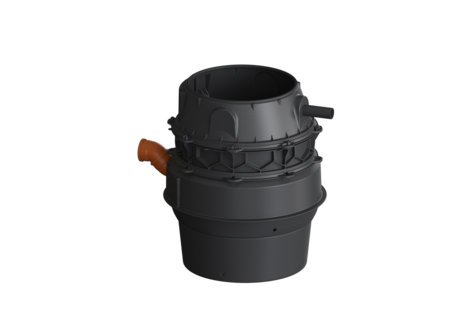

KESSEL Pumping station Aquapump XL, Tronic, wastewater with sewage, underground installation, height 1500 mm, pump control by Control unit, with a submersible SPF 1500 pump, operating mode S3 - 50 %, level measurement pneumatic
- Maximum safety
- Flexible installation
- Hygienic advantages for maintenance and repair
| Item no. | 8742013 |
|---|---|
| GTIN | 4026092069493 |
| Price group | 60 |
Pumping station Aquapump XL Tronic, SPF 1500-S3, D0
The pumping station for wastewater with and without sewage is equipped with one or two submersible pumps, a backflow preventer and a shut-off valve for the pressure pipe. The collection tank made of permanently resistant polymer (PE) has a closed pump tank (dry installation) with a screwed-on access cover. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact. Alternatively, alarm and collective fault messages can be output via a GSM interface. The KESSEL modular system provides different upper sections and engineering chamber options as accessories. Variant Note on installation depth: Version with lowest installation height Type of system: Single unit Shut-off valve: Shut-off valve made of polymer Access steps: yes Installation: Dry installation Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: underground installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) System type: Tronic ATEX: no Dimensions Net weight: 177 kg Gross weight: 200 kg Groundwater resistant from lower edge of base section: 3000 mm Length: 1295 mm Width: 1295 mm Height: 1500 mm Packaging dimension: length: 2000 mm Packaging dimension: width: 1300 mm Packaging dimension: height: 1435 mm Tank/drain body Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Venting connection (DN): 70 Distance from centre of outlet pipe to tank bottom: 1343 mm Distance pipe bottom inlet to tank bottom: 753 mm Distance from centre of inlet pipe to tank bottom: 833 mm Distance from inlet pipe invert to top of tank: 747 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 mm Number of inlets: 1 Clear width of tank (LW): 1000 mm Clear width of entry (LW): 800 mm Pumping volume: 160 l Tank volume: 335 l Pumping device Pump: SPF 1500 Number of pumps: 1 Weight, pump: 24 kg Connection type: Direct connection Rated current: 2,7 A Protection class: I Insulation class: F Cos phi - power factor: 0,77 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 40 m³/h Max. pumping height: 8 m Speed: 1415 U/min Power P1: 1,4 kW Power P2: 1,1 kW Operating mode: S3 - 50 % Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Length of mains cable for pump: 10 m Control Control unit: Comfort Motor protection switch: yes Alarm sensor: Immersion pipe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 2,7 A
| Title | Item no. | ||
|---|---|---|---|
 | Upper section with cover plate LW 800, Class K 3, tileable | 8740175 | Show |
 | Upper section with cover plate LW 800, Cl K 3 with waterproof flange | 8740176 | Show |
 | Upper section with cover plate LW 800, Class A/L15 | 8740177 | Show |
 | Upper section with cover plate LW 800, Class A/L15 w. waterproof flange | 8740178 | Show |
 | Upper section with cover plate LW 800, Class B | 8740179 | Show |
 | Upper section Square cover plate, LW 800, Class D | 8740180 | Show |
 | Upper section with cover plate LW 800, Cl K 3 | 8740181 | Show |
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Basic alarm unit with electronic probe | 20222 | Show |
 | Basic alarm unit with optical probe | 20223 | Show |
 | Compressor set for air bubbling | 28048 | Show |
 | TeleControl GSM modem for Comfort control units 230V/400V | 28792 | Show |
 | Connection box for level sensor extension | 28799 | Show |
 | Intermediate section 250 mm, for chamber module LW 1000 | 680370 | Show |
 | Intermediate section 500 mm, for chamber module LW 1000 | 680371 | Show |
 | Spare part set, optical probe 5 m cable | 80888 | Show |
 | Cable accessories Extension for probe | 80889 | Show |
 | Installation set Thermostat, Hygrostat | 97713 | Show |
 | Outdoor Cabinet W: 590 mm,for installation control units | 97714 | Show |
 | Warning beacon for outdoor cabinet | 97715 | Show |
| Outdoor Cabinet W: 460 mm, for installation control unit | 97716 | Show |
| Outdoor cabinet W: 785 mm,for installation control units | 97723 | Show | |
| Outdoor Cabinet W: 1115mm,for installation control units | 97724 | Show |
| Title | Item no. | ||
|---|---|---|---|
 | Replacement set pump flange with screw set, flange gasket | 28051 | Show |
 | Comfort control unit 400V, Aqualift Mono, 2.5-4.0 A | 28755 | Show |
 | Battery 9 V block | 680034 | Show |
 | Seal Pump flange | 680045 | Show |
 | Screw set galvanised, 14 each | 680047 | Show |
 | Pump flange SPF 1400 - SPF 4500 | 680050 | Show |
 | Seal for SPF 1400 - SPF 4500 | 680052 | Show |
 | Flap set Rolling ring, flap, flap holder | 680053 | Show |
 | Pump drive SPF 1500 400 V, S3, 10 m cable | 680098 | Show |
 | Immersion pipe for Aqualift F XL, 280 mm | 680388 | Show |
 | Flap housing for Duo systems, with 2 shut-off valves | 680419 | Show |
 | Cleaning cover screwed, DN 160 | 680421 | Show |
 | Seal set Pump flange | 680422 | Show |
 | Pressure piping DN 90 | 680446 | Show |
 | Cover for pump flange, d: 220 mm | 680460 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates | |
| Declaration of Performance |
- CE marking (ce_kennzeichnung):
yes
- Type of wastewater (abwasserart_de): with sewage
- Control unit (schaltgeraet): Comfort
- TÜV test mark (pruefzeichen):
ID 1111241940
- Installation situation (einbausituation):
underground installation
- Alarm sensor (alarmgeber): Immersion pipe
- Pump (pumpe): SPF 1500
- Impeller type (laufrad_typ): Multi-vane impeller
