Yard drain

System 400, DN 100, A, 380 - 510 mm

851100A
Back to table of variants PDF product data sheet

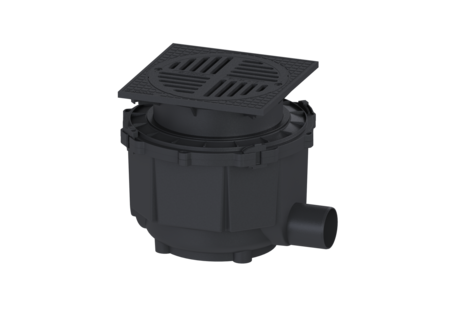

KESSEL Yard drain, nominal size (DN) 100, installation depth 380 - 510 mm, load class A 15, odour trap no, Cover Polymer, cover width 400 mm, cover length 400 mm, drainage by Point drain, socket lateral, drain body Polymer

  • Different load classes available
  • Height-adjustable complete system
  • Easy underground installation
Item no. 851100A
GTIN 4026092004258
Price group 10

    Yard drain System 400, DN 100, A, 380 - 510 mm
    The polymer yard drain is used for point drainage and is resistant to aggressive wastewater. It is equipped with a sludge bucket and fuel resistant seals. The polymer upper section enables continuous height and level adjustment. Variant System: 400 Heating: without Contents of sludge trap: yes Discharge rate (l/s) with 20 mm threshold: 4,5 General characteristics Colour: black Standard: EN 752 Nominal size (DN): 100 Outer diameter (OD): 110 mm Odour trap: no Dimensions Net weight: 10 kg Gross weight: 10 kg Groundwater resistant from lower edge of base section: 500 mm Cutout dimension, width: 535 mm Cutout dimension, length: 585 mm Min. insertion depth: 55 mm Installation depth: 380 - 510 mm Type of height adjustability: vertically adjustable upper section Packaging dimension: length: 585 mm Packaging dimension: width: 535 mm Packaging dimension: height: 510 mm Tank/drain body Number of outlets: 1 Material of drain body: Polymer Socket version: lateral Coverage features Type of cover: Round slotted cover Cover material: Polymer Colour of cover: black Width of cover: 400 mm Length of cover: 400 mm Surface: EDM Load class: A 15 (EN 124) Rim width: 400 mm Rim length: 400 mm Shape of upper section: square Contents of sludge trap: yes
