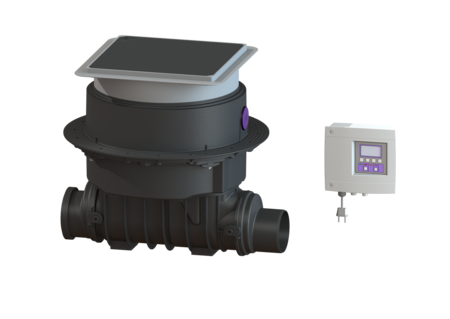

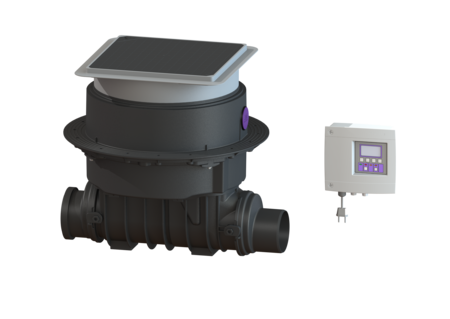

Staufix FKA auto. backwater valve

DN 125, Floor slab, black

84125S
84125S
PDF product data sheet

KESSEL Staufix FKA auto. backwater valve, control unit Comfort, nominal size (DN) 125, wastewater with sewage, locking Lock & Lift, floor slab installation, type of cover Cover plate

  • Safe, motor-driven closure system with optical probe
  • Fast, simple and toolless maintenance
  • Available as a complete set or module set
Item no. 84125S
GTIN 4026092046388
Price group 30

Staufix FKA auto. backwater valve DN 125, Floor slab, black
The Premium automatic backwater valve for faecal and faecal-free wastewater is equipped with a motor-driven closure system which is closed automatically in the event of backwater. A second closure system serves as an emergency closure to be closed by hand. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. Thanks to the modular KESSEL system, existing systems can easily be converted to a Pumpfix F backwater pumping station. Variant Emergency closure: yes Protection class, probe: IP 68 (3m/48h) Motor-driven backwater flaps: 1 Mechanical backwater flaps: 1 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 125 Outer diameter (OD): 125 mm Type of wastewater: with sewage Installation situation: floor slab installation Delivery state: Pre-mounted for final assembly on site (sensor system must be fitted on site and control unit must be connected) Backwater protection: Type 3 Motor type: KSM 140 Type de protection moteur: IP 68 (3m/48h) Cable length: 5 m Dimensions Net weight: 16,5 kg Gross weight: 21,37 kg Groundwater resistant from lower edge of base section: 3000 mm Cutout dimension, width: 750 mm Cutout dimension, length: 750 mm Vertical drop between inlet and outlet: 9 mm Installation depth: 516 - 669 mm Type of height adjustability: vertically adjustable upper section Length: 645 mm Width: 590 mm Packaging dimension: length: 785 mm Packaging dimension: width: 615 mm Packaging dimension: height: 550 mm Tank/drain body Socket version: including spigot and socket Coverage features Type of cover: Cover plate Cover material: Polymer Colour of cover: black Width of cover: 366 mm Length of cover: 366 mm Locking: Lock & Lift Load class: L 15 (EN 1253-1) Tightness: surface water resistant Control Control unit: Comfort Alarm sensor: optical probe Level measurement instrument: optical probe Type of level measurement: optical Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Connection to the BCS, BAC: yes
  Title Item no.
  Title Item no.
Commissioning Staufix FKA 80111 Show
Maintenance Staufix FKA 80117 Show
  Title Item no.
20162 Remote signal generator 20 m cable, 2x0.75 q 20162 Show
80077 Clearance code for potential-free contact 80077 Show
80098 Pumpfix F conversion kit DN 100-200, fr. 01/2011, Floor slab 80098 Show
80889 Cable accessories Extension for probe 80889 Show
80890 Cable accessories Extension for motor 80890 Show
80891 Cable accessories Extension for pump 80891 Show
83070 Extension section H: 200 mm 83070 Show
83073 Extension section H: 234 mm, with flange and mating flange 83073 Show
83075 Extension section H: 360 mm, with central flange 83075 Show
  Title Item no.
680034 Battery 9 V block 680034 Show
680101 Flap holder for motor-driven and mechanical flap 680101 Show
680150 Seal for upper section, from 07/2014 680150 Show
686114 Seal for cover plate, System 330 mm 686114 Show
70214 Testing funnel with seal 70214 Show
70318 Seal set for split lockable covers 70318 Show
80016 Lockable cover Staufix FKA Inlet side 80016 Show
80017 Lockable cover Staufix FKA Outlet side 80017 Show
80038 Backwater flap motor-driven, with flap holder 80038 Show
80039 Slide-in flap housing for motorised flap with flap holder 80039 Show
80041 Slide-in flap housing with mechanical flap, flap holder 80041 Show
80071 Comfort control unit 230 V, Staufix FKA 80071 Show
80076 Drive motor plug-in ready, 5 m cable 80076 Show
80888 Spare part set, optical probe 5 m cable 80888 Show
80892 Adapter Set optical probe 80892 Show
830050 Cover plate surface water resistant, black 366x366mm 830050 Show
830065 Upper section system 400 Lockable, silver-grey 830065 Show
83082 Spigot DN 125, with seal 83082 Show
83086 Socket DN 125, with seal 83086 Show
  • Nominal size (DN) (nennweite): 125
  • Control unit (schaltgeraet): Comfort
  • Cover material (abdeckung_material): Polymer
  • Installation situation (einbausituation): floor slab installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): with sewage
  • Type of cover (abdeckungsart): Cover plate
  • Length (laenge): 645  mm
  • Width (breite): 590  mm
  • Backwater protection (rueckstauschutz): Type 3
