Cover plate

Tileable, with drain and Multistop

83045
83045
PDF product data sheet

KESSEL Cover plate Tileable, with drain and Multistop, stone grey Polymer

Item no. 83045
GTIN 4026092048306
Price group 30

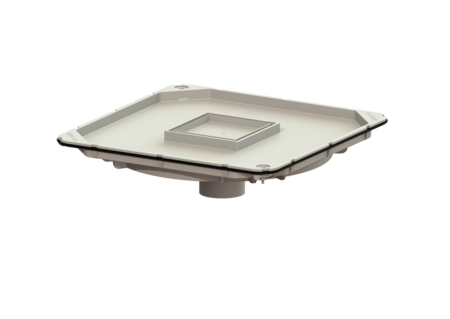

    Cover plate Tileable, with drain and Multistop
    Cover plate with drain and odour trap for backwater valves and lifting stations with vertically adjustable upper section for floor slab installation Variant Seal: yes General characteristics Colour: stone grey Material: Polymer Odour trap: Multistop Dimensions Net weight: 1,84 kg Gross weight: 2,52 kg Packaging dimension: length: 440 mm Packaging dimension: width: 440 mm Packaging dimension: height: 175 mm Coverage features Type: with drain Type of cover: tileable cover plate Drainage function: yes Surface: tileable Load class: A 15 (EN 124) / L 15 (EN 1253-1) Max. flooring height: 16 mm
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    680224 Cover tileable, Lock & Lift, ABS 680224 Show
    CAD Data
    • Material (material): Polymer
