Pumping station Aquapump Small
Mono, Basic, GTF 600

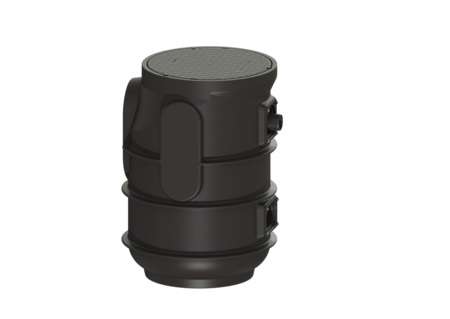

KESSEL Pumping station Aquapump Small, Mono, wastewater without sewage, height 830 mm, with a submersible GTF 600 pump, level measurement Float switch
- Including backflow preventer for the pressure pipe
- Including openings for inlet, ventilation and cable duct
- Easy tool-free maintenance
| Item no. | 829810 |
|---|---|
| GTIN | 4026092092958 |
| Price group | 20 |
Pumping station Aquapump Small Mono, Basic, GTF 600
The pumping station without sewagel wastewater is suitable for underground installation and is equipped with a backflow preventer for the pressure pipe. The PE tank is resistant to domestic wastewater and includes a pedestrian class polymer cover plate. The pump with multi-vane impeller ensures maximum operating reliability. The components are pre-assembled for final assembly on site. Including openings for inlet. - tank made of PE, resistant to domestic wastewater - with a pedestrian class cover plate made of polymer - including backflow preventer for the pressure pipe - including openings for inlet, ventilation and cable duct - pump/s with multi-vane impeller for maximum operating reliability Variant Type of system: Single unit Installation: Wet installation Pump control: Float switch Backflow preventer: integrated General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: underground installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) System type: Mono Dimensions Net weight: 26 kg Gross weight: 32 kg Installation depth: 0 - 830 mm Length: 590 mm Width: 590 mm Height: 830 mm Packaging dimension: length: 800 mm Packaging dimension: width: 700 mm Packaging dimension: height: 950 mm Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Inlet max. scoring (DN): 100 mm Pumping volume: 20 l Coverage features Type of cover: Round cover plate Colour of cover: black Width of cover: 600 mm Length of cover: 615 mm Locking: lockable Load class: up to 300 kg Pumping device Pump: GTF 600 Number of pumps: 1 Weight, pump: 6 kg Connection type: Schuko (earthed contact) 2-pin Rated current: 2,9 A Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 12 m³/h Max. pumping height: 8 m Speed: 2750 U/min Power P1: 0,65 kW Power P2: 0,4 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 30 mm Switching level, float switch OFF: 160 Switching level, float switch ON: 260 Length of mains cable for pump: 10 m Control Motor protection switch: yes Level measurement instrument: Float switch Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Length of mains cable for control unit: 1,45 m Type of fuse required (electrical protection): C 16 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | One-handed closure for backflow preventer | 680018 | Show |
 | Seal for pressure pipe connection | 680067 | Show |
 | Seal for upper section, from 07/2014 | 680150 | Show |
 | Pump connection with seal and flap | 680475 | Show |
 | Pump connection Minilift L, Aqualift S | 680760 | Show |
 | Flap housing Mono, with pump connector | 680761 | Show |
 | Turn fastener for pump connection lock | 680762 | Show |
 | Cover plate round, incl. screws and seal | 680801 | Show |
 | Impeller GTF 600, free passage 30 mm | 680887 | Show |
 | Spiral housing GTF 600, free passage 30 mm | 680888 | Show |
 | Pressure pipe DN 32, GTF 600 | 680961 | Show |
 | Replacement pump GTF 600 with float switch, 10 m | 680963 | Show |
 | Pump hanger Mono, GTF 600 | 680967 | Show |
 | Bracket for ressure pipe, Mono | 680969 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates | |
| Declaration of Performance | |
| Declaration of Conformity |
- TÜV test mark (pruefzeichen):
ID 1111241937
- Installation situation (einbausituation):
underground installation
- CE marking (ce_kennzeichnung):
yes
- Type of wastewater (abwasserart_de): without sewage
- Load class (belastungsklasse): up to 300 kg
- Pump (pumpe): GTF 600
- Impeller type (laufrad_typ): Multi-vane impeller
- (schaltgeraet):
