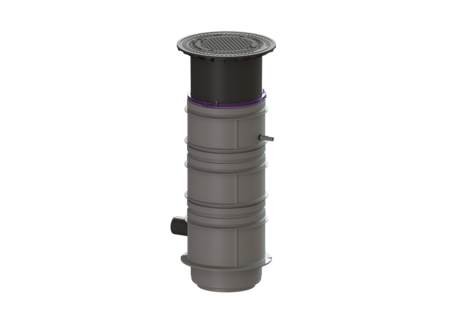

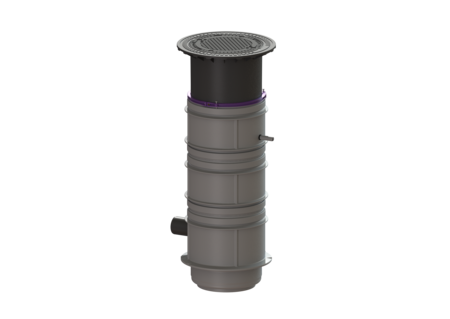

Pumping station Aquapump Medium

Tronic, STZ 1000, 1800-2250 mm, B

827731B
PDF product data sheet

KESSEL Pumping station Aquapump Medium, Tronic, with inlet, wastewater for wastewater with or without sewage (in installation situations without ATEX requirements), load class B 125, installation depth 1800 - 2250 mm, with a submersible STZ 1000 pump

  • height-adjustable upper section
  • Preconfigured in the factory
  • LW 600 chamber system suitable for underground installation
Item no. 827731B
GTIN 4026092052143
Price group 60

Pumping station Aquapump Medium Tronic, STZ 1000, 1800-2250 mm, B
The pumping station with sewage wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank is an LW 600 chamber system made of permanently resistant polymer (PE-LLD) with open pump tank and universal connection options. Quick-release closures enable the integrated components to be removed easily. Variant Type of system: Single unit Passage seal for conduit pipe (DN): 100 Access steps: no Passage seal for ventilation pipe (DN): 100 Installation: Wet installation Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal Chamber system: LW 600 General characteristics Standard: EN 12050-2, EN 12050-2 as well as EN 12050-1 (without ATEX requirements) Type of wastewater: for wastewater with or without sewage (in installation situations without ATEX requirements) Installation situation: underground installation System type: Tronic ATEX: no Dimensions Net weight: 127 kg Gross weight: 139 kg Groundwater resistant from lower edge of base section: 2500 mm Diameter: 809 mm Clear width (LW): 600 mm Installation depth: 1800 - 2250 mm Length: 1000 mm Width: 806 mm Packaging dimension: length: 1200 mm Packaging dimension: width: 800 mm Packaging dimension: height: 2220 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Connection conduit pipe (DN): 100 Venting connection (DN): 100 Distance from centre of outlet pipe to tank bottom: 1394 mm Distance pipe bottom inlet to tank bottom: 400 mm Distance from centre of inlet pipe to tank bottom: 475 mm Inlet nominal size (DN): 150 mm Number of inlets: 1 Clear width of tank (LW): 600 mm Pumping volume: 30 l Coverage features Type of cover: Round cover plate Load class: B 125 (EN 124) Pumping device Pump: STZ 1000 Number of pumps: 1 Weight, pump: 10 kg Connection type: Schuko (earthed contact) 2-pin Rated current: 5,2 A Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 11,5 m³/h Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,69 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Impeller type: Macerator Length of mains cable for pump: 10 m Control Control unit: Comfort Control unit function: With alarm message Motor protection switch: yes Alarm sensor: optical probe Level measurement instrument: Submersible pressure switch Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Potential-free contact: yes GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Warning equipment version: acoustic and optical signal Rated current: 5,2 A Type of fuse required (electrical protection): C 16 A
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
  • Control unit (schaltgeraet): Comfort
  • TÜV test mark (pruefzeichen): ID 1111241940
  • Installation situation (einbausituation): underground installation
  • CE marking (ce_kennzeichnung): yes
  • Load class (belastungsklasse): B 125 (EN 124)
  • Pump (pumpe): STZ 1000
  • Installation depth (einbautiefe): 1,800  mm
  • Impeller type (laufrad_typ): Macerator
  • Inlet nominal size (DN) (zulauf_nennweite_dn): 150  mm
