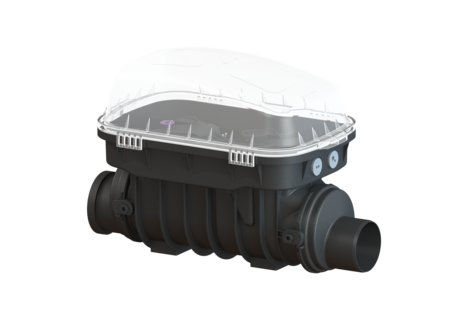

Controlfix clean out
DN 100, exposed
KESSEL Controlfix clean out, nominal size (DN) 100, transparent, wastewater for wastewater with and without sewage, locking Clip closure, exposed drainage pipe, type of cover Protective cover
- Simple conversion to Staufix SWA
- Fast, simple and toolless maintenance
- Quick and toolless access for cleaning
Item no. | 80100 |
---|---|
GTIN | 4026092002681 |
Price group | 30 |
Controlfix clean out DN 100, exposed
The Premium clean out for faecal and faecal-free wastewater makes easy access to wastewater pipes possible for inspection and maintenance work. Thanks to the modular KESSEL system, existing systems can easily be converted to a Staufix SWA Premium backwater valve, Staufix FKA or Pumpfix F backwater pumping station. General characteristics Colour: black Nominal size (DN): 100 Outer diameter (OD): 110 mm Type of wastewater: for wastewater with and without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Dimensions Net weight: 6 kg Gross weight: 9,01 kg Vertical drop between inlet and outlet: 9 mm Length: 486 mm Width: 350 mm Height: 422 mm Packaging dimension: length: 643,2 mm Packaging dimension: width: 350 mm Packaging dimension: height: 421,8 mm Tank/drain body Socket version: including spigot and socket Coverage features Type of cover: Protective cover Cover material: Polymer Colour of cover: transparent Width of cover: 350 mm Height of cover: 165 mm Length of cover: 542 mm Locking: Clip closure
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
Seal set for split lockable covers | 70318 | Show | |
Lockable cover Controlfix Inlet side | 80011 | Show | |
Lockable cover Controlfix Outlet side | 80012 | Show | |
Protective cover transparent | 83031 | Show | |
Upper section for attaching a protective cover | 83032 | Show | |
Spigot DN 100, with seal | 83081 | Show | |
Socket DN 100, with seal | 83085 | Show |
Manuals | |
---|---|
CAD Data | |
Test Reports and Certificates |
- Nominal size (DN) (nennweite): 100
- Cover material (abdeckung_material): Polymer
- Installation situation (einbausituation): exposed drainage pipe
- Type of wastewater (abwasserart_de): for wastewater with and without sewage
- Length (laenge): 486 mm
- Width (breite): 350 mm
