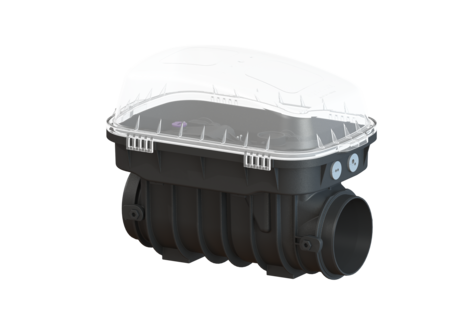

Controlfix clean out
w/o socket, exposed
KESSEL Controlfix clean out, transparent, wastewater for wastewater with and without sewage, locking Clip closure, exposed drainage pipe, type of cover Protective cover
- Simple conversion to Staufix SWA
- Fast, simple and toolless maintenance
- Quick and toolless access for cleaning
Item no. | 80000 |
---|---|
GTIN | 4026092053812 |
Price group | 30 |
Controlfix clean out w/o socket, exposed
The Premium clean out for faecal and faecal-free wastewater makes easy access to wastewater pipes possible for inspection and maintenance work. Thanks to the modular KESSEL system, existing systems can easily be converted to a Staufix SWA Premium backwater valve, Staufix FKA or Pumpfix F backwater pumping station. General characteristics Colour: black Type of wastewater: for wastewater with and without sewage Installation situation: exposed drainage pipe Delivery state: Modular set for assembly on site Dimensions Net weight: 6,78 kg Gross weight: 8,28 kg Vertical drop between inlet and outlet: 9 mm Length: 486 mm Width: 350 mm Height: 422 mm Packaging dimension: length: 643,2 mm Packaging dimension: width: 350 mm Packaging dimension: height: 421,8 mm Tank/drain body Socket version: optional Coverage features Type of cover: Protective cover Cover material: Polymer Colour of cover: transparent Width of cover: 350 mm Height of cover: 165 mm Length of cover: 542 mm Locking: Clip closure
Title | Item no. | ||
---|---|---|---|
Spigot DN 100, with seal | 83081 | Show | |
Spigot DN 125, with seal | 83082 | Show | |
Spigot DN 150, with seal | 83083 | Show | |
Spigot DN 200, with seal | 83084 | Show | |
Socket DN 100, with seal | 83085 | Show | |
Socket DN 125, with seal | 83086 | Show | |
Socket DN 150, with seal | 83087 | Show | |
Socket DN 200, with seal | 83088 | Show |
Title | Item no. |
---|
Manuals | |
---|---|
CAD Data |
- Cover material (abdeckung_material): Polymer
- Installation situation (einbausituation): exposed drainage pipe
- Type of wastewater (abwasserart_de): for wastewater with and without sewage
- (nennweite):
- Length (laenge): 486 mm
- Width (breite): 350 mm
