Pipe flap valve
DN 400
KESSEL Pipe flap valve, nominal size (DN) 400, wastewater without sewage, outside diameter (OD) 405 mm, exposed drainage pipe, volume 62,38 dm³
- For universal use in salt and fresh water environments
- Low weight for simple installation with high mechanical strength
- High tightness: seals airtight even with low counter-pressure
Item no. | 79400 |
---|---|
GTIN | 4026092011669 |
Price group | 10 |

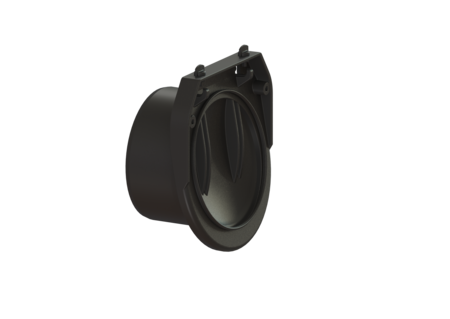

Pipe flap valve DN 400
The pipe flap valve serves as an end piece and has a mechanical flap which closes automatically. Variant Mechanical backwater flaps: 1 General characteristics Colour: black Material: Polymer Nominal size (DN): 400 Outer diameter (OD): 405 mm Type of wastewater: without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Dimensions Net weight: 10,21 kg Gross weight: 10,21 kg Length: 295 mm Width: 417 mm Height: 420 mm Packaging dimension: length: 445 mm Packaging dimension: width: 445 mm Packaging dimension: height: 315 mm
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
Manuals | |
---|---|
CAD Data |
- Material (material): Polymer
- Installation situation (einbausituation): exposed drainage pipe
- Type of wastewater (abwasserart_de): without sewage
- Nominal size (DN) (nennweite): 400
- Length (laenge): 295 mm
- Width (breite): 417 mm
- Mechanical backwater flaps (mechanische_rueckstauklappen): 1
