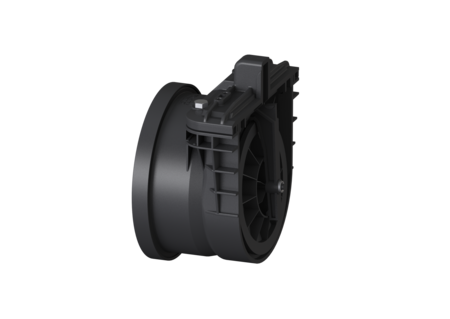

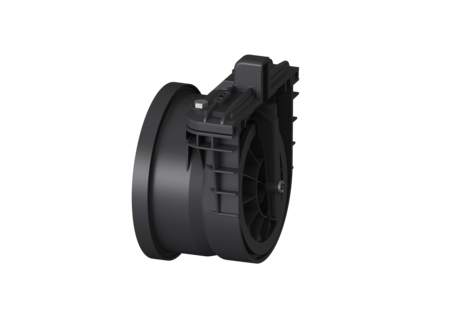

Pipe flap valve

DN 200

79200
79200
Back to table of variants PDF product data sheet

KESSEL Pipe flap valve, nominal size (DN) 200, wastewater without sewage, outside diameter (OD) 200 mm, exposed drainage pipe, volume 17,63 dm³

  • For universal use in salt and fresh water environments
  • Low weight for simple installation with high mechanical strength
  • High tightness: seals airtight even with low counter-pressure
Item no. 79200
GTIN 4026092002490
Price group 10

    Pipe flap valve DN 200
    The pipe flap valve serves as an end piece and has a mechanical flap which closes automatically. Variant Mechanical backwater flaps: 1 General characteristics Colour: black Material: Polymer Nominal size (DN): 200 Outer diameter (OD): 200 mm Type of wastewater: without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Dimensions Net weight: 1,72 kg Gross weight: 2,01 kg Length: 170 mm Width: 248 mm Height: 248 mm Packaging dimension: length: 276 mm Packaging dimension: width: 241 mm Packaging dimension: height: 265 mm
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    680008 Screw for lockable cover DN 200 680008 Show
    70205 Slide-in flap housing DN 200, with seal and flap 70205 Show
    CAD Data
    Test Reports and Certificates
    • Nominal size (DN) (nennweite): 200
    • Material (material): Polymer
    • Installation situation (einbausituation): exposed drainage pipe
    • Type of wastewater (abwasserart_de): without sewage
    • Length (laenge): 170  mm
    • Width (breite): 248  mm
    • Mechanical backwater flaps (mechanische_rueckstauklappen): 1
