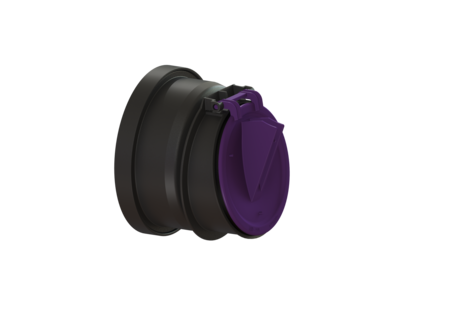

Pipe flap valve
DN 150
KESSEL Pipe flap valve, nominal size (DN) 150, wastewater without sewage, outside diameter (OD) 150 mm, exposed drainage pipe, volume 7 dm³
- For universal use in salt and fresh water environments
- Low weight for simple installation with high mechanical strength
- High tightness: seals airtight even with low counter-pressure
| Item no. | 79150 |
|---|---|
| GTIN | 4026092002483 |
| Price group | 10 |
Pipe flap valve DN 150
The pipe flap valve serves as an end piece and has a mechanical flap which closes automatically. Variant Mechanical backwater flaps: 1 General characteristics Colour: black Material: Polymer Nominal size (DN): 150 Outer diameter (OD): 150 mm Type of wastewater: without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Dimensions Net weight: 0,52 kg Gross weight: 0,62 kg Length: 142 mm Width: 190 mm Height: 190 mm Packaging dimension: length: 200 mm Packaging dimension: width: 200 mm Packaging dimension: height: 175 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data |
|---|
- Nominal size (DN) (nennweite): 150
- Material (material):
Polymer
- Installation situation (einbausituation):
exposed drainage pipe
- Type of wastewater (abwasserart_de):
without sewage
- Length (laenge): 142 mm
- Width (breite): 190 mm
- Mechanical backwater flaps (mechanische_rueckstauklappen): 1
