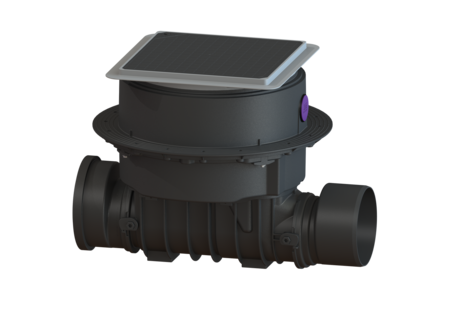

Backwater valve Staufix SWA

DN 200, Floor slab, black

73200.10S
73200.10S
PDF product data sheet

KESSEL Backwater valve Staufix SWA, wastewater without sewage, nominal size (DN) 200, floor slab installation, type of cover Cover plate, 2 mechanical backwater flaps, outside diameter (OD) 200 mm, locking Lock & Lift

  • Simple conversion to Staufix FKA or Pumpfix F
  • Fast, simple and toolless maintenance
  • Available as a complete set or module set
Item no. 73200.10S
GTIN 4026092046746
Price group 30

Backwater valve Staufix SWA DN 200, Floor slab, black
The premium backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves at the same time as an emergency closure to be closed by hand. Thanks to the modular KESSEL system, existing systems can easily be converted to a Staufix FKA premium backwater valve or a Pumpfix F backwater pumping station. Variant Emergency closure: yes Mechanical backwater flaps: 2 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 200 Outer diameter (OD): 200 mm Note on nominal size: Hydraulics correspond to DN 150 Type of wastewater: without sewage Installation situation: floor slab installation Delivery state: Installation-ready (connection parts must be connected on site) Backwater protection: Type 2 Dimensions Net weight: 13,5 kg Gross weight: 19 kg Groundwater resistant from lower edge of base section: 3000 mm Cutout dimension, width: 750 mm Cutout dimension, length: 750 mm Vertical drop between inlet and outlet: 9 mm Installation depth: 516 - 669 mm Type of height adjustability: vertically adjustable upper section Length: 720 mm Width: 590 mm Packaging dimension: length: 719,5 mm Packaging dimension: width: 590 mm Packaging dimension: height: 348 mm Tank/drain body Socket version: including spigot and socket Coverage features Type of cover: Cover plate Cover material: Polymer Colour of cover: black Width of cover: 366 mm Length of cover: 366 mm Locking: Lock & Lift Load class: L 15 (EN 1253-1) Tightness: surface water resistant
  Title Item no.
  Title Item no.
  Title Item no.
80093 Staufix FKA conversion kit DN 100-200, fr. 01/2011, 5 m cable 80093 Show
80098 Pumpfix F conversion kit DN 100-200, fr. 01/2011, Floor slab 80098 Show
83070 Extension section H: 200 mm 83070 Show
83073 Extension section H: 234 mm, with flange and mating flange 83073 Show
83075 Extension section H: 360 mm, with central flange 83075 Show
  Title Item no.
680101 Flap holder for motor-driven and mechanical flap 680101 Show
680150 Seal for upper section, from 07/2014 680150 Show
686114 Seal for cover plate, System 330 mm 686114 Show
70214 Testing funnel with seal 70214 Show
70318 Seal set for split lockable covers 70318 Show
80013 Lockable cover Staufix SWA Inlet side 80013 Show
80014 Lockable cover Staufix SWA Outlet side 80014 Show
80041 Slide-in flap housing with mechanical flap, flap holder 80041 Show
830050 Cover plate surface water resistant, black 366x366mm 830050 Show
830065 Upper section system 400 Lockable, silver-grey 830065 Show
83084 Spigot DN 200, with seal 83084 Show
83088 Socket DN 200, with seal 83088 Show
  • Nominal size (DN) (nennweite): 200
  • Cover material (abdeckung_material): Polymer
  • Installation situation (einbausituation): floor slab installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Type of cover (abdeckungsart): Cover plate
  • Length (laenge): 720  mm
  • Width (breite): 590  mm
  • Backwater protection (rueckstauschutz): Type 2
