Backwater valve Staufix SWA
DN 150, Floor slab, tileable
KESSEL Backwater valve Staufix SWA, wastewater without sewage, nominal size (DN) 150, floor slab installation, type of cover tileable cover plate, 2 mechanical backwater flaps, outside diameter (OD) 160 mm, locking Lock & Lift
- Simple conversion to Staufix FKA or Pumpfix F
- Fast, simple and toolless maintenance
- Available as a complete set or module set
| Item no. | 73150.10X |
|---|---|
| GTIN | 4026092003985 |
| Price group | 30 |

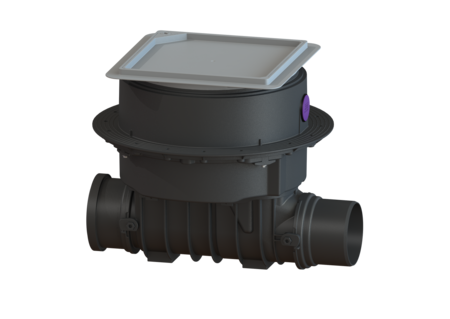

Backwater valve Staufix SWA DN 150, Floor slab, tileable
The premium backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves at the same time as an emergency closure to be closed by hand. Thanks to the modular KESSEL system, existing systems can easily be converted to a Staufix FKA premium backwater valve or a Pumpfix F backwater pumping station. Variant Emergency closure: yes Mechanical backwater flaps: 2 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 150 Outer diameter (OD): 160 mm Type of wastewater: without sewage Installation situation: floor slab installation Delivery state: Installation-ready (connection parts must be connected on site) Backwater protection: Type 2 Dimensions Net weight: 14 kg Gross weight: 19,5 kg Groundwater resistant from lower edge of base section: 3000 mm Cutout dimension, width: 750 mm Cutout dimension, length: 750 mm Vertical drop between inlet and outlet: 9 mm Installation depth: 516 - 669 mm Type of height adjustability: vertically adjustable upper section Length: 656 mm Width: 590 mm Packaging dimension: length: 657,1 mm Packaging dimension: width: 590 mm Packaging dimension: height: 348 mm Tank/drain body Socket version: including spigot and socket Coverage features Type of cover: tileable cover plate Cover material: Polymer Width of cover: 366 mm Length of cover: 366 mm Locking: Lock & Lift Load class: K 3 (EN 1253-1) Tightness: surface water resistant Max. flooring height: 16 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Staufix FKA conversion kit DN 100-200, fr. 01/2011, 5 m cable | 80093 | Show |
 | Pumpfix F conversion kit DN 100-200, fr. 01/2011, Floor slab | 80098 | Show |
 | Extension section H: 200 mm | 83070 | Show |
 | Extension section H: 234 mm, with flange and mating flange | 83073 | Show |
 | Extension section H: 360 mm, with central flange | 83075 | Show |
| Title | Item no. | ||
|---|---|---|---|
 | Flap holder for motor-driven and mechanical flap | 680101 | Show |
 | Seal for upper section, from 07/2014 | 680150 | Show |
 | Seal for cover plate, System 330 mm | 686114 | Show |
 | Testing funnel with seal | 70214 | Show |
 | Seal set for split lockable covers | 70318 | Show |
 | Lockable cover Staufix SWA Inlet side | 80013 | Show |
 | Lockable cover Staufix SWA Outlet side | 80014 | Show |
 | Slide-in flap housing with mechanical flap, flap holder | 80041 | Show |
 | Cover plate surface water resistant, tileable | 830052 | Show |
 | Upper section system 400 Lockable, silver-grey | 830065 | Show |
 | Spigot DN 150, with seal | 83083 | Show |
 | Socket DN 150, with seal | 83087 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates | |
| Declaration of Performance | |
| Declaration of Conformity |
- Nominal size (DN) (nennweite): 150
- Cover material (abdeckung_material):
Polymer
- TÜV test mark (pruefzeichen):
ID 1111242698
- Installation situation (einbausituation):
floor slab installation
- CE marking (ce_kennzeichnung):
yes
- Type of wastewater (abwasserart_de):
without sewage
- Type of cover (abdeckungsart): tileable cover plate
- Length (laenge): 656 mm
- Width (breite): 590 mm
- Backwater protection (rueckstauschutz): Type 2
