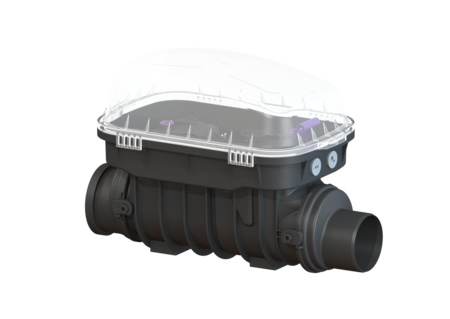

Backwater valve Staufix SWA

DN 125, exposed

73125.10
73125.10
PDF product data sheet

KESSEL Backwater valve Staufix SWA, wastewater without sewage, nominal size (DN) 125, exposed drainage pipe, type of cover Protective cover, 2 mechanical backwater flaps, outside diameter (OD) 125 mm, locking Clip closure

  • Simple conversion to Staufix FKA or Pumpfix F
  • Fast, simple and toolless maintenance
  • Available as a complete set or module set
Item no. 73125.10
GTIN 4026092003930
Price group 30

Backwater valve Staufix SWA DN 125, exposed
The premium backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves at the same time as an emergency closure to be closed by hand. Thanks to the modular KESSEL system, existing systems can easily be converted to a Staufix FKA premium backwater valve or a Pumpfix F backwater pumping station. Variant Emergency closure: yes Mechanical backwater flaps: 2 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 125 Outer diameter (OD): 125 mm Type of wastewater: without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Backwater protection: Type 2 Dimensions Net weight: 11,1 kg Gross weight: 12 kg Vertical drop between inlet and outlet: 9 mm Length: 645 mm Width: 350 mm Height: 422 mm Packaging dimension: length: 785 mm Packaging dimension: width: 385 mm Packaging dimension: height: 465 mm Tank/drain body Socket version: including spigot and socket Coverage features Type of cover: Protective cover Cover material: Polymer Colour of cover: transparent Width of cover: 350 mm Height of cover: 165 mm Length of cover: 542 mm Locking: Clip closure
  Title Item no.
  Title Item no.
  Title Item no.
80093 Staufix FKA conversion kit DN 100-200, fr. 01/2011, 5 m cable 80093 Show
80097 Pumpfix F conversion kit DN 100-200, fr. 01/2011, exposed 80097 Show
  Title Item no.
680101 Flap holder for motor-driven and mechanical flap 680101 Show
70214 Testing funnel with seal 70214 Show
70318 Seal set for split lockable covers 70318 Show
80013 Lockable cover Staufix SWA Inlet side 80013 Show
80014 Lockable cover Staufix SWA Outlet side 80014 Show
80041 Slide-in flap housing with mechanical flap, flap holder 80041 Show
83031 Protective cover transparent 83031 Show
83032 Upper section for attaching a protective cover 83032 Show
83082 Spigot DN 125, with seal 83082 Show
83086 Socket DN 125, with seal 83086 Show
  • Nominal size (DN) (nennweite): 125
  • Cover material (abdeckung_material): Polymer
  • TÜV test mark (pruefzeichen): ID 1111242698
  • Installation situation (einbausituation): exposed drainage pipe
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Length (laenge): 645  mm
  • Width (breite): 350  mm
  • Backwater protection (rueckstauschutz): Type 2
