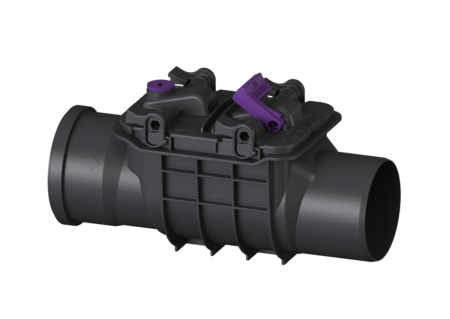

Backwater valve Staufix Basic
DN 100, Type 2 R, with emergency closure
KESSEL Backwater valve Staufix Basic, backwater protection Type 2, nominal size (DN) 100, wastewater without sewage, exposed drainage pipe, 2 mechanical backwater flaps, outside diameter (OD) 110 mm, yes
- Optional rat protection flap for additional safety
- Fast and toolless maintenance and cleaning
- Ideal for modernisation, can also be installed in existing pipes later
| Item no. | 73100R |
|---|---|
| GTIN | 4026092028339 |
| Price group | 10 |
Backwater valve Staufix Basic DN 100, Type 2 R, with emergency closure
The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves at the same time as an emergency closure to be closed by hand. Variant Stainless steel flap as rat protection: yes Emergency closure: yes Mechanical backwater flaps: 2 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 100 Outer diameter (OD): 110 mm Type of wastewater: without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Backwater protection: Type 2 Dimensions Net weight: 1,4 kg Gross weight: 1,4 kg Vertical drop between inlet and outlet: 9 mm Length: 355 mm Width: 155 mm Height: 205 mm Packaging dimension: length: 210 mm Packaging dimension: width: 164 mm Packaging dimension: height: 365 mm Coverage features Cover locking: Quick-release closure
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Emergency closure lever for Staufix DN 100 | 680063 | Show |
 | Testing funnel with seal | 70214 | Show |
 | Backwater flap DN 100 | 70231 | Show |
 | Backwater flap DN 100, with stainless steel attachment | 70233 | Show |
 | Slide-in flap housing DN 100, with seal | 70241 | Show |
 | Lockable cover Staufix DN 100, with emergency closure | 70261 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Declaration of Performance |
- Nominal size (DN) (nennweite): 100
- Installation situation (einbausituation):
exposed drainage pipe
- CE marking (ce_kennzeichnung):
yes
- Type of wastewater (abwasserart_de):
without sewage
- Backwater protection (rueckstauschutz): Type 2
- Mechanical backwater flaps (mechanische_rueckstauklappen): 2
- Emergency closure (notverschluss): yes
