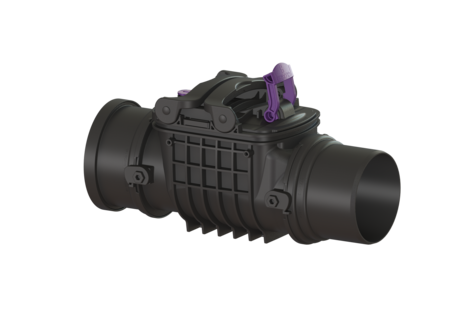

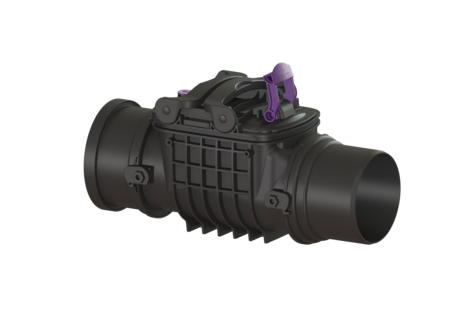

Backwater valve Staufix
DN 150, exposed, Type 2
KESSEL Backwater valve Staufix, nominal size (DN) 150, wastewater without sewage, cover locking One-handed closure, exposed drainage pipe, type of cover Lockable cover, no
- Optional rat protection flap for additional safety
- Flexible installation, various covers available for floor slab installation
- Alternatively available as a module set
| Item no. | 730150 |
|---|---|
| GTIN | 4026092076477 |
| Price group | 10 |
Backwater valve Staufix DN 150, exposed, Type 2
The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves as an emergency closure to be closed by hand. Thanks to the modular KESSEL system, existing systems can easily be converted to the StaufixControl backwater valve. Variant Stainless steel flap as rat protection: no Emergency closure: yes Mechanical backwater flaps: 2 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 150 Outer diameter (OD): 160 mm Type of wastewater: without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Backwater protection: Type 2 Dimensions Net weight: 3,41 kg Gross weight: 4,09 kg Vertical drop between inlet and outlet: 8 mm Length: 526 mm Width: 214 mm Height: 306 mm Packaging dimension: length: 524 mm Packaging dimension: width: 222 mm Packaging dimension: height: 265 mm Coverage features Type of cover: Lockable cover Cover locking: One-handed closure
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Battery 3 V for control unit | 680665 | Show |
 | Seal Cover seal for Staufix, DN 125-200 | 686113 | Show |
 | Testing funnel with seal | 70214 | Show |
 | Backwater flap DN 125/150 | 70232 | Show |
 | Slide-in flap housing DN 125/150, with seal | 70242 | Show |
 | Lockable cover DN125-200, with emergency closure | 72230 | Show |
 | Spigot DN 150, with seal | 83083 | Show |
 | Socket DN 150, with seal | 83087 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates | |
| Declaration of Performance |
- Nominal size (DN) (nennweite): 150
- Installation situation (einbausituation):
exposed drainage pipe
- CE marking (ce_kennzeichnung):
yes
- Type of wastewater (abwasserart_de):
without sewage
- Length (laenge): 526 mm
- Width (breite): 214 mm
- Backwater protection (rueckstauschutz): Type 2
- Stainless steel flap as rat protection (edelstahlklappe_rattenschutz): no
