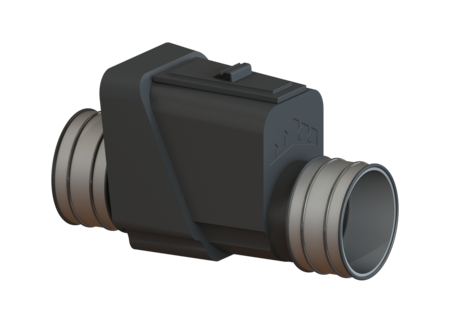

Backwater valve Multitube
DN 300, 1 flap
KESSEL Backwater valve Multitube, wastewater without sewage, nominal size (DN) 300, underground installation, a mechanical backwater flap, outside diameter (OD) 320 mm, cover locking screwed
- Inlet and outlet with pipe clamp
- Bridgeable outer diameter at least nominal width + 20 mm
- Simple maintenance and cleaning
| Item no. | 71300 |
|---|---|
| GTIN | 4026092011614 |
| Price group | 10 |
Backwater valve Multitube DN 300, 1 flap
The backwater valve for rainwater is equipped with a mechanical flap which closes automatically in the event of backwater. Variant Mechanical backwater flaps: 1 General characteristics Colour: black Nominal size (DN): 300 Outer diameter (OD): 320 mm Note on nominal size: Bridgeable outer diameter of pipe clamps: 310 - 335 mm Type of wastewater: without sewage Installation situation: underground installation Delivery state: installation-ready ATEX: no Dimensions Net weight: 25 kg Gross weight: 25 kg Vertical drop between inlet and outlet: 35 mm Length: 735 mm Width: 520 mm Height: 578 mm Packaging dimension: length: 820 mm Packaging dimension: width: 380 mm Packaging dimension: height: 520 mm Coverage features Cover locking: screwed
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data | |
|---|---|
| Test Reports and Certificates |
- Nominal size (DN) (nennweite): 300
- Installation situation (einbausituation):
underground installation
- Type of wastewater (abwasserart_de):
without sewage
- Length (laenge): 735 mm
- Width (breite): 520 mm
- Mechanical backwater flaps (mechanische_rueckstauklappen): 1
