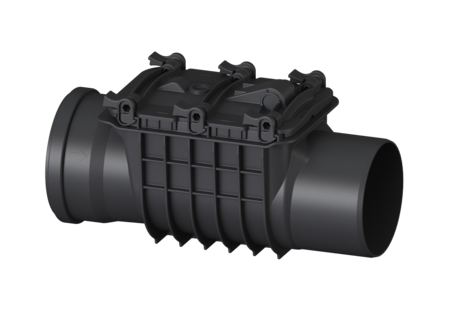

Backwater valve Staufix Basic

DN 150, Type 0, w/o emergency closure

71150

KESSEL Backwater valve Staufix Basic, backwater protection Type 0, nominal size (DN) 150, wastewater Rainwater, exposed drainage pipe, a mechanical backwater flap, outside diameter (OD) 160 mm, cover locking Quick-release closure

  • Simple conversion possible using conversion kits
  • Fast and toolless maintenance and cleaning
  • Ideal for modernisation, can also be installed in existing pipes later
Item no. 71150
GTIN 4026092002339
Price group 10

Backwater valve Staufix Basic DN 150, Type 0, w/o emergency closure
The backwater valve for rainwater is equipped with a mechanical flap which closes automatically in the event of backwater. Thanks to the modular KESSEL system, existing systems can easily be supplemented by a second backwater flap or an emergency closure. Variant Mechanical backwater flaps: 1 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 150 Outer diameter (OD): 160 mm Type of wastewater: Rainwater Installation situation: exposed drainage pipe Delivery state: installation-ready Backwater protection: Type 0 Dimensions Net weight: 2,11 kg Gross weight: 2,42 kg Vertical drop between inlet and outlet: 9 mm Length: 450 mm Width: 200 mm Height: 230 mm Packaging dimension: length: 255 mm Packaging dimension: width: 215 mm Packaging dimension: height: 455 mm Coverage features Cover locking: Quick-release closure
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
70232 Backwater flap DN 125/150 70232 Show
70234 Backwater flap DN 125/150, with stainl steel attachment 70234 Show
70252 Lockable cover Staufix DN 125/150 70252 Show
Manuals
Test Reports and Certificates
Declaration of Performance
  • Nominal size (DN) (nennweite): 150
  • TÜV test mark (pruefzeichen): ID 1111242698
  • Installation situation (einbausituation): exposed drainage pipe
  • CE marking (ce_kennzeichnung): yes
  • Backwater protection (rueckstauschutz): Type 0
  • Mechanical backwater flaps (mechanische_rueckstauklappen): 1
  • (notverschluss):
