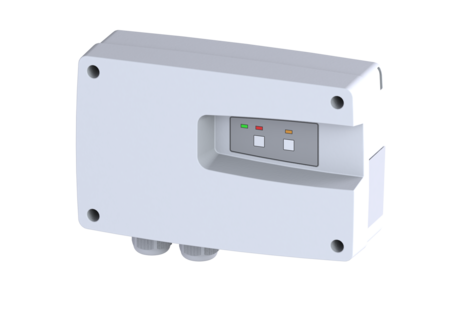

Control unit Connect
400 V, grease separator
User-friendly Connect control unit with optical and acoustic warning
| Item no. | 681095 |
|---|---|
| GTIN | 4026092102404 |
| Price group | 90 |
Control unit Connect 400 V, grease separator
User-friendly Connect control unit with optical and acoustic warning Dimensions Net weight: 0,66 kg Gross weight: 0,98 kg Packaging dimension: length: 290 mm Packaging dimension: width: 196 mm Packaging dimension: height: 102 mm Control Control unit: Connect Motor protection switch: yes Standby power: 2 W Type of fuse required (RCD): 30 mA Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Potential-free contact: optional GSM interface: no USB interface: no Log book function: no Multi-line display: no Battery buffering: yes Type of fuse required (electrical protection): C 16 A Rated current: 2,5 - 6 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| Declaration of Conformity |
