Replacement pump GTF 1250

with float switch, 10 m

680965
PDF product data sheet

Replacement pump with float switch for wastewater containing faecal matter.

Item no. 680965
GTIN 4026092095409
Price group 90

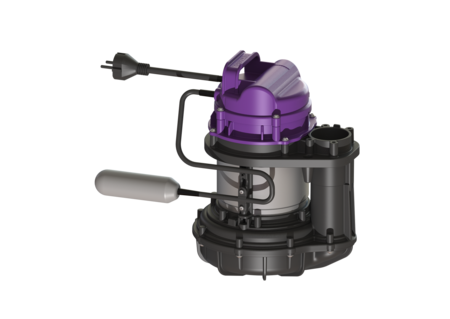

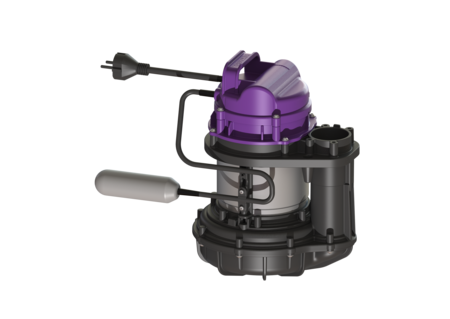

    Replacement pump GTF 1250 with float switch, 10 m
    Replacement pump with float switch for wastewater containing faecal matter. Variant Pump control: Float switch General characteristics Type of wastewater: without sewage Dimensions Net weight: 11,1 kg Gross weight: 11,1 kg Packaging dimension: length: 379 mm Packaging dimension: width: 326 mm Packaging dimension: height: 293 mm Pumping device Pump: GTF 1250 Connection type: Schuko (earthed contact) 2-pin Operating voltage: 230 V Rated current: 5,4 A Protection class (pump): IP 68 (3m) Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 11 m Speed: 2700 U/min Power P1: 1,3 kW Power P2: 0,8 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Length of mains cable for pump: 10 m Control Connection type: Schuko (earthed contact) 2-pin Type of fuse required (electrical protection): C 16 A
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    680804 Multi-vane impeller for STF 1300 680804 Show
    680998 Spiral housing GTF 1250, free ball passage 30 mm 680998 Show
    • Type of wastewater (abwasserart_de): without sewage
