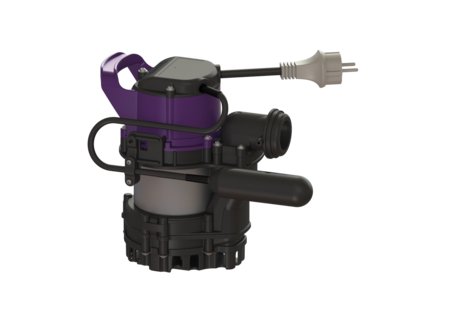

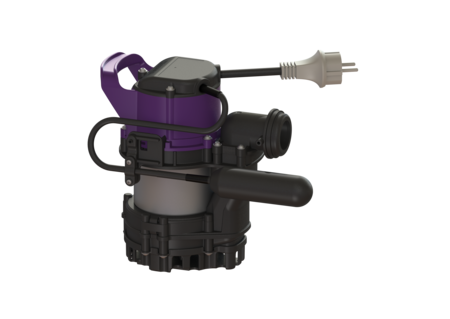

Replacement pump GTF 500
with float switch, Aqualift S size 3
Replacement pump GTF 500 , assembled ready to plug-in, with float switch, for faecal-free wastewater.
| Item no. | 680828 |
|---|---|
| GTIN | 4026092085547 |
| Price group | 90 |
Replacement pump GTF 500 with float switch, Aqualift S size 3
Replacement pump GTF 500 , assembled ready to plug-in, with float switch, for faecal-free wastewater. Dimensions Net weight: 5,95 kg Gross weight: 6,3 kg Packaging dimension: length: 276 mm Packaging dimension: width: 241 mm Packaging dimension: height: 265 mm Pumping device Pump: GTF 500 Operating voltage: 230 V Mains frequency: 50 Hz Rated current: 2,7 A Protection class: I Protection class (pump): IP 68 Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 8 m Speed: 2800 U/min Power P1: 0,6 kW Power P2: 0,36 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Length of mains cable for pump: 5 m Control Operating voltage: 230 V Type of fuse required (electrical protection): C 16 A
