Replacement pump GTK 5200

without float switch

680708
PDF product data sheet

Replacement pump GTK 5200 without float switch, for pumping station, wet installation

Item no. 680708
GTIN 4026092082034
Price group 90

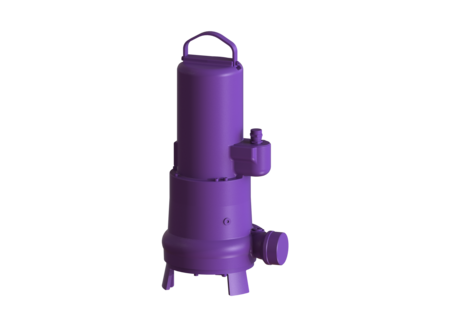

    Replacement pump GTK 5200 without float switch
    Replacement pump GTK 5200 without float switch, for pumping station, wet installation Variant Pump control: Control unit General characteristics Type of wastewater: without sewage Dimensions Net weight: 57 kg Gross weight: 59 kg Packaging dimension: length: 380 mm Packaging dimension: width: 260 mm Packaging dimension: height: 720 mm Pumping device Pump: GTK 5200 Weight, pump: 56 kg Connection type: Direct connection Operating voltage: 400 V Mains frequency: 50 Hz Rated current: 8,7 A Protection class: I Insulation class: H Cos phi - power factor: 0,85 Protection class (pump): IP 68 Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 31,6 m Speed: 2840 U/min Power P1: 5,2 kW Power P2: 4,4 kW Operating mode: S3 - 30 % Type of fuse required (electrical protection): Fuse protection through control unit 400 V Type of pump connection cable: H07RN8-F PLU 10G 1.5 mm² Length of mains cable for pump: 10 m Control Connection type: Direct connection Type of fuse required (electrical protection): Fuse protection through control unit 400 V
      Title Item no.
      Title Item no.
      Title Item no.
    680528 Replacement chain pumping statio. Stainless steel, length 2 m 680528 Show
    680529 Replacement chain pumping statio. Stainless steel, length 3 m 680529 Show
    680530 Replacement chain for pump statns Stainless steel, length 4 m 680530 Show
    680531 Replacement chain, pumping stat. Stainless steel, length 5 m 680531 Show
      Title Item no.
    Test Reports and Certificates
    • Type of wastewater (abwasserart_de): without sewage
