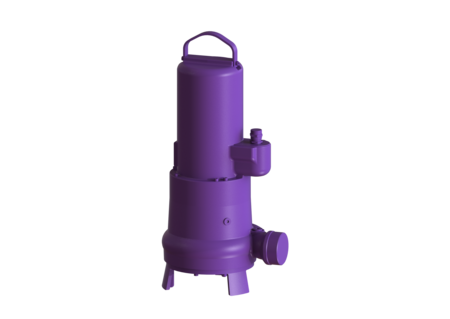

Replacement pump GTF 5200
without float switch
Replacement pump without float switch for pumping station, wet installation
| Item no. | 680707 |
|---|---|
| GTIN | 4026092082027 |
| Price group | 90 |
Replacement pump GTF 5200 without float switch
Replacement pump without float switch for pumping station, wet installation Variant Pump control: Control unit General characteristics ATEX: no Dimensions Net weight: 55 kg Gross weight: 58 kg Packaging dimension: length: 380 mm Packaging dimension: width: 260 mm Packaging dimension: height: 720 mm Pumping device Pump: GTF 5200 Weight, pump: 56 kg Connection type: Direct connection Operating voltage: 400 V Mains frequency: 50 Hz Rated current: 8,7 A Protection class: I Insulation class: H Cos phi - power factor: 0,85 Protection class (pump): IP 68 Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 21 m Speed: 2835 U/min Power P1: 5,2 kW Power P2: 4,4 kW Operating mode: S3 - 30 % Type of fuse required (electrical protection): Fuse protection through control unit 400 V Type of pump connection cable: H07RN8-F PLU 10G 1.5 mm² Length of mains cable for pump: 10 m Control Connection type: Direct connection Type of fuse required (electrical protection): Fuse protection through control unit 400 V
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Replacement chain pumping statio. Stainless steel, length 2 m | 680528 | Show |
| Replacement chain pumping statio. Stainless steel, length 3 m | 680529 | Show |
| Replacement chain for pump statns Stainless steel, length 4 m | 680530 | Show |
| Replacement chain, pumping stat. Stainless steel, length 5 m | 680531 | Show |
| Title | Item no. |
|---|
| Test Reports and Certificates |
|---|
