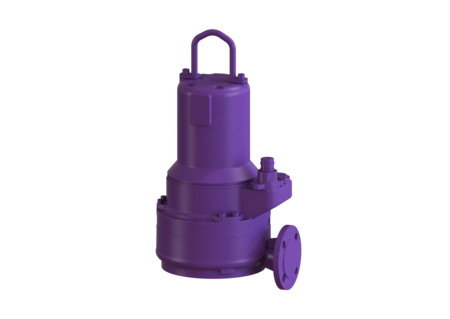

Replacement pump STZ 7500
without float switch, ATEX
Replacement pump without float switch for pumping station, wet installation
| Item no. | 680705 |
|---|---|
| GTIN | 4026092082003 |
| Price group | 90 |
Replacement pump STZ 7500 without float switch, ATEX
Replacement pump without float switch for pumping station, wet installation General characteristics Type of wastewater: for wastewater with and without sewage ATEX: yes Dimensions Net weight: 105 kg Gross weight: 113 kg Packaging dimension: length: 550 mm Packaging dimension: width: 450 mm Packaging dimension: height: 900 mm Pumping device Pump: STZ 7500 Weight, pump: 104 kg Connection type: Direct connection Operating voltage: 400 V Mains frequency: 50 Hz Rated current: 13 A Protection class: I Insulation class: H Cos phi - power factor: 0,88 Protection class (pump): IP 68 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 42 m Speed: 2900 U/min Power P1: 7,5 kW Power P2: 6,4 kW Operating mode: S1 Type of fuse required (electrical protection): Fuse protection through control unit 400 V Type of pump connection cable: H07RN8-F PLU 10G 1.5 mm² Impeller type: Macerator Length of mains cable for pump: 10 m Control Connection type: Direct connection Type of fuse required (electrical protection): Fuse protection through control unit 400 V
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Replacement chain pumping statio. Stainless steel, length 2 m | 680528 | Show |
| Replacement chain pumping statio. Stainless steel, length 3 m | 680529 | Show |
| Replacement chain for pump statns Stainless steel, length 4 m | 680530 | Show |
| Replacement chain, pumping stat. Stainless steel, length 5 m | 680531 | Show |
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| Test Reports and Certificates |
- ATEX (atex):
yes
- Type of wastewater (abwasserart_de):
for wastewater with and without sewage
