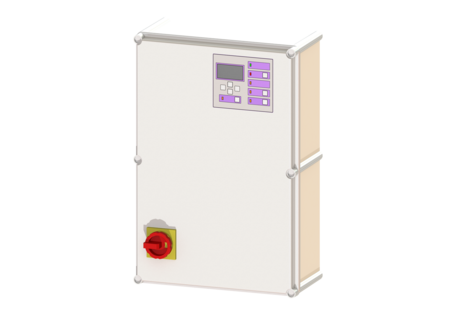

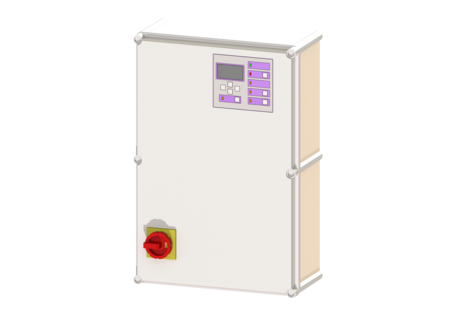

Control unit, Comfort Plus SD

Mono/Duo, 400 V, (2x)9.0-14.0 A, AX

PDF product data sheet

User-friendly control unit with ATEX Zener barrier

Item no. 680638
GTIN 4026092081921
Price group 90

    Control unit, Comfort Plus SD Mono/Duo, 400 V, (2x)9.0-14.0 A, AX
    User-friendly control unit with ATEX Zener barrier General characteristics System type: Duo Dimensions Net weight: 15 kg Gross weight: 15 kg Packaging dimension: length: 640 mm Packaging dimension: width: 463 mm Packaging dimension: height: 270 mm Pumping device Connection type: Direct connection Rated current: 9 - 14 A Control Control unit: Comfort Plus SD Motor protection switch: yes Standby power: 7 W Type of fuse required (RCD): 30 mA Protection class control unit: IP 54 Connection type: Direct connection Potential-free contact: yes GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Type of fuse required (electrical protection): C 16 A, C 32 A Rated current: 9 - 14 A
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Control unit (schaltgeraet): Comfort Plus SD
    • ATEX (atex): yes
