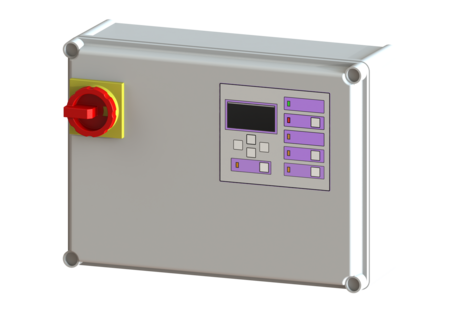

Comfort Plus control unit
Mono/Duo, 400 V, (2x)6.3-10.0 A, AX
User-friendly control unit with optical and acoustic warning.
| Item no. | 680637 |
|---|---|
| GTIN | 4026092081914 |
| Price group | 90 |
Comfort Plus control unit Mono/Duo, 400 V, (2x)6.3-10.0 A, AX
User-friendly control unit with optical and acoustic warning. General characteristics System type: Duo Dimensions Net weight: 3,5 kg Gross weight: 5 kg Packaging dimension: length: 420 mm Packaging dimension: width: 365 mm Packaging dimension: height: 230 mm Pumping device Connection type: Direct connection Rated current: 6,3 - 10 A Control Control unit: Comfort Plus Motor protection switch: yes Standby power: 5 W Type of fuse required (RCD): 30 mA Protection class control unit: IP 54 Connection type: Direct connection Potential-free contact: yes GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Type of fuse required (electrical protection): C 32 A, C 20 A Rated current: 6,3 - 10 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Test Reports and Certificates |
|---|
- Control unit (schaltgeraet):
Comfort Plus
- ATEX (atex):
yes
