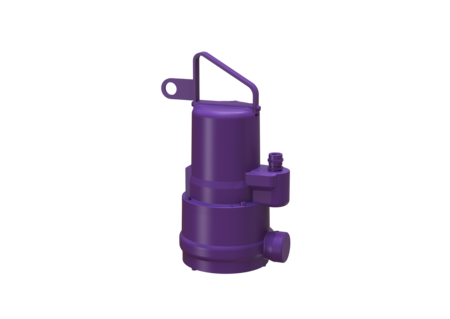

Replacem. pump Aquadive STZ 1300

without float switch, 10 m, ATEX

680604
PDF product data sheet

Replacement pump, Aquadive STZ 1300, ATEX, without float, for pumping station, wet installation

Item no. 680604
GTIN 4026092078488
Price group 90

    Replacem. pump Aquadive STZ 1300 without float switch, 10 m, ATEX
    Replacement pump, Aquadive STZ 1300, ATEX, without float, for pumping station, wet installation Variant Pump control: Control unit General characteristics Cable length: 10 m Dimensions Net weight: 27 kg Gross weight: 30 kg Packaging dimension: length: 260 mm Packaging dimension: width: 370 mm Packaging dimension: height: 610 mm Pumping device Pump: STZ 1300 Weight, pump: 27 kg Connection type: Direct connection Operating voltage: 400 V Mains frequency: 50 Hz Rated current: 2,5 A Protection class: I Insulation class: H Cos phi - power factor: 0,8 Protection class (pump): IP 68 Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 21 m Speed: 2900 U/min Power P1: 1,3 kW Power P2: 0,9 kW Operating mode: S1 Type of fuse required (electrical protection): Fuse protection through control unit 400 V Type of pump connection cable: H07RN8-F 6G 1.5 mm² Impeller type: Macerator Length of mains cable for pump: 10 m Control Connection type: Direct connection Type of fuse required (electrical protection): Fuse protection through control unit 400 V
      Title Item no.
      Title Item no.
      Title Item no.
    680528 Replacement chain pumping statio. Stainless steel, length 2 m 680528 Show
    680529 Replacement chain pumping statio. Stainless steel, length 3 m 680529 Show
    680530 Replacement chain for pump statns Stainless steel, length 4 m 680530 Show
    680531 Replacement chain, pumping stat. Stainless steel, length 5 m 680531 Show
      Title Item no.
    • ATEX (atex): yes
