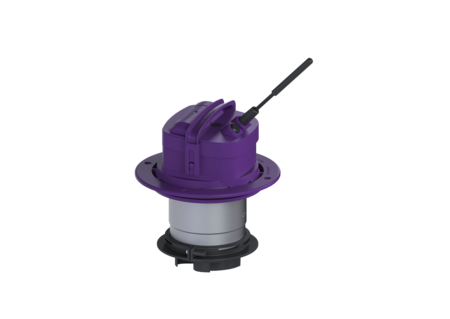

Replacement pump Aquadive SPF1300
230 V
Replacement pump, Aquadive, SPF 1300 for faecal wastewater
| Item no. | 680535 |
|---|---|
| GTIN | 4026092075012 |
| Price group | 90 |
Replacement pump Aquadive SPF1300 230 V
Replacement pump, Aquadive, SPF 1300 for faecal wastewater Variant Pump control: Control unit General characteristics Type of wastewater: with sewage Dimensions Net weight: 9,39 kg Gross weight: 10,3 kg Packaging dimension: length: 379 mm Packaging dimension: width: 326 mm Packaging dimension: height: 293 mm Pumping device Pump: SPF 1300 Number of pumps: 1 Weight, pump: 9,39 kg Connection type: Direct connection Operating voltage: 230 V Mains frequency: 50 Hz Rated current: 6,4 A Protection class: I Insulation class: F Cos phi - power factor: 0,98 Protection class (pump): IP 68 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 35 °C Max. pumping height: 9,2 m Speed: 2600 U/min Power P1: 1,5 kW Power P2: 0,91 kW Operating mode: S3 - 10 % Type of pump connection cable: H07RN-F 3G 1.5 mm² Length of mains cable for pump: 5 m Control Operating voltage: 230 V Connection type: Direct connection
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| Test Reports and Certificates | |
| Declaration of Conformity |
- Type of wastewater (abwasserart_de):
with sewage
