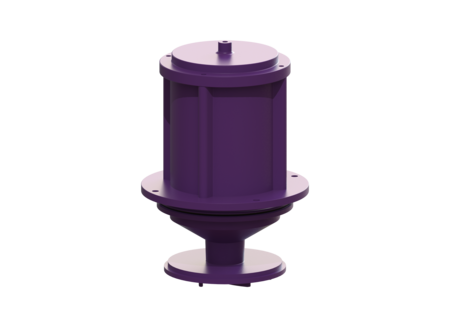

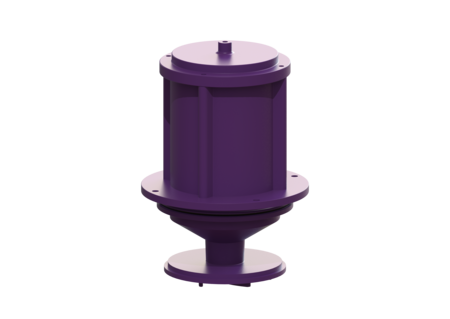

Replacement pump pumping station
dry installation SPF 4500-S1
Replacement pump type SPF 4500-S1 for Aqualift FXL pumping station, dry installation
| Item no. | 680534 |
|---|---|
| GTIN | 4026092074954 |
| Price group | 90 |
Replacement pump pumping station dry installation SPF 4500-S1
Replacement pump type SPF 4500-S1 for Aqualift FXL pumping station, dry installation Variant Pump control: Control unit General characteristics Cable length: 10 m ATEX: no Dimensions Net weight: 33,2 kg Gross weight: 36 kg Packaging dimension: length: 585 mm Packaging dimension: width: 350 mm Packaging dimension: height: 380 mm Pumping device Pump: SPF 4500 Connection type: Direct connection Operating voltage: 400 V Mains frequency: 50 Hz Rated current: 7,5 A Protection class: I Insulation class: F Cos phi - power factor: 0,85 Protection class (pump): IP 68 Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 20 m Speed: 2850 U/min Power P1: 4,2 kW Power P2: 3,5 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): Fuse protection through control unit 400 V Type of pump connection cable: H07RN-F 7G 1.5 mm² Length of mains cable for pump: 10 m Control Connection type: Direct connection Type of fuse required (electrical protection): Fuse protection through control unit 400 V
