Pump drive SPF 3000
400 V, S1, 10 m cable

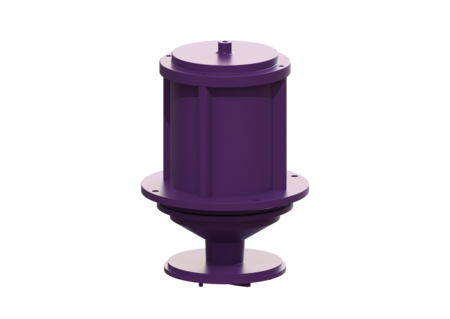

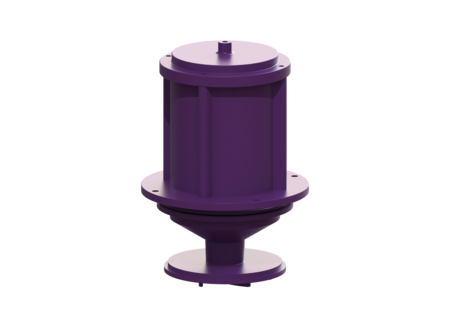

Pump drive type SPF 3000-S1 for Aqualift F XL pumping station, dry installation
| Item no. | 680532 |
|---|---|
| GTIN | 4026092074930 |
| Price group | 90 |
Pump drive SPF 3000 400 V, S1, 10 m cable
Pump drive type SPF 3000-S1 for Aqualift F XL pumping station, dry installation Dimensions Net weight: 27,5 kg Gross weight: 30,3 kg Packaging dimension: length: 585 mm Packaging dimension: width: 350 mm Packaging dimension: height: 380 mm Pumping device Pump: SPF 3000-S1 Connection type: Direct connection Operating voltage: 400 V Mains frequency: 50 Hz Protection class: I Insulation class: F Cos phi - power factor: 0,89 Protection class (pump): IP 68 Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 16 m Speed: 2845 U/min Power P1: 3,2 kW Power P2: 2,7 kW Operating mode: S1 Type of pump connection cable: H07RN-F 7G 1.5 mm² Rated current: 5,4 A Control Operating voltage: 400 V Connection type: Direct connection Type of fuse required (electrical protection): Fuse protection through control unit 400 V
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| Declaration of Conformity |
