Control unit
SonicControl, LFA
Control unit for SonicControl layer thickness measuring device for light liquid separators
| Item no. | 680347 |
|---|---|
| GTIN | 4026092068052 |
| Price group | 90 |

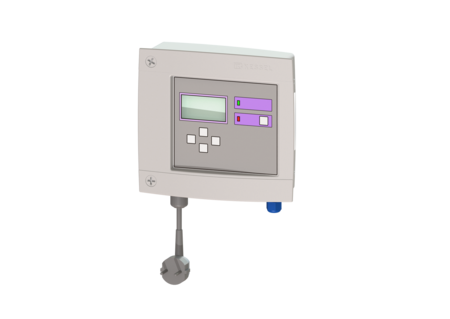

Control unit SonicControl, LFA
Control unit for SonicControl layer thickness measuring device for light liquid separators Dimensions Net weight: 1,6 kg Gross weight: 1,97 kg Packaging dimension: length: 390 mm Packaging dimension: width: 190 mm Packaging dimension: height: 310 mm Pumping device Connection type: Schuko (earthed contact) 2-pin Control Motor protection switch: no Protection class control unit: IP 54 Connection type: Schuko (earthed contact) 2-pin Length of mains cable for control unit: 1,45 m Potential-free contact: yes GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Type of fuse required (electrical protection): C 16 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Test Reports and Certificates |
|---|
