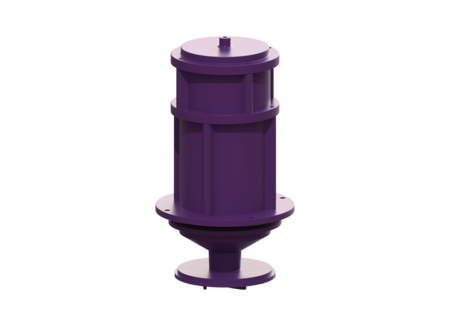

Pump drive SPF 1400
230 V, S3, 10 m cable, with capacitor
Pump drive with multi-vane impeller for faecal wastewater
| Item no. | 680218 |
|---|---|
| GTIN | 4026092066775 |
| Price group | 90 |
Pump drive SPF 1400 230 V, S3, 10 m cable, with capacitor
Pump drive with multi-vane impeller for faecal wastewater General characteristics Type of wastewater: with sewage Dimensions Net weight: 27,2 kg Gross weight: 30 kg Packaging dimension: length: 585 mm Packaging dimension: width: 350 mm Packaging dimension: height: 380 mm Pumping device Pump: SPF 1400 Connection type: Direct connection Rated current: 7,3 A Protection class: I Run dry safe: yes Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 7 m Speed: 1370 U/min Power P1: 1,6 kW Power P2: 1,1 kW Operating mode: S3 - 50 % Length of mains cable for pump: 10 m Control Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Direct connection
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| Test Reports and Certificates | |
| Declaration of Conformity |
- Type of wastewater (abwasserart_de):
with sewage
