Yard drain

System 200, horiz., slot grat., B 125

67923B
Back to table of variants PDF product data sheet

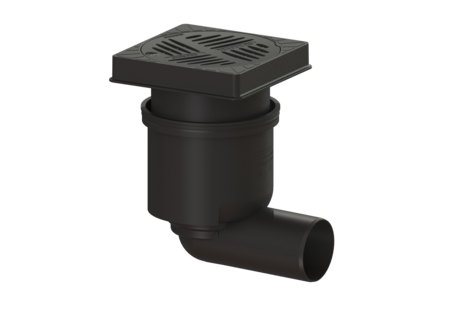

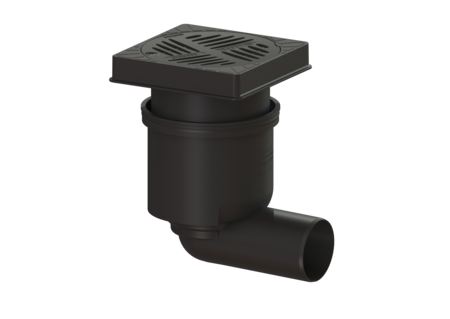

KESSEL Yard drain, System 200, nominal size (DN) 100, load class B 125, drainage by Point drain, socket lateral, shape of upper section square, drain body Polymer, upper section material Ecoguss

  • Recyclable
  • Fulfils highest sound protection requirements
  • Temperature-resistant up to 400 degrees Celsius
Item no. 67923B
GTIN 4026092038819
Price group 10

    Yard drain System 200, horiz., slot grat., B 125
    The Ecoguss yard drain is used for point drainage and is equipped with a sludge bucket. The recyclable composite material, Ecoguss fulfils the highest sound protection requirements, can withstand temperatures up to 400 degrees Celsius and has a permanently corrosion-free surface. The outlet socket is suitable for connection to polymer pipes. Separate equipotential bonding is not necessary. Variant System: 200 Contents of sludge trap: yes Discharge rate (l/s) with 20 mm threshold: 4,5 General characteristics Nominal size (DN): 100 Odour trap: no Dimensions Vertical adjustment: 40 - 150 mm Net weight: 3,96 kg Gross weight: 4,36 kg Packaging dimension: length: 340 mm Packaging dimension: width: 340 mm Packaging dimension: height: 240 mm Tank/drain body Number of outlets: 1 Material of drain body: Polymer Socket version: lateral Coverage features Type of cover: Round slotted cover Cover material: Ecoguss Colour of cover: black Width of cover: 258 mm Length of cover: 258 mm Surface: EDM Frame material: Ecoguss Locking: Lock & Lift Load class: B 125 (EN 124) Rim width: 258 mm Rim length: 258 mm Shape of upper section: square Upper section material: Ecoguss Contents of sludge trap: yes
      Title Item no.
      Title Item no.
      Title Item no.
    67400 Extension section Polymer, 40 - 150 mm 67400 Show
    67500 Extension section System 200, Polymer 67500 Show
    67600 Extension section System 200, Side inlet DN 100 67600 Show
      Title Item no.
    48520 Odour trap Multistop, System 200 48520 Show
    67007 Locking key for Ecoguss slotted gratings,Lock & Lift 67007 Show
    680216 Slotted cover Ecoguss, d: 235 mm, B 125 680216 Show
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): Polymer
    • Cover material (abdeckung_material): Ecoguss
    • Frame material (rahmen_material): Ecoguss
    • Upper section material (material_aufsatzstueck): Ecoguss
    • Socket version (stutzen_ausfuehrung): lateral
    • Load class (belastungsklasse): B 125 (EN 124)
    • Locking (verriegelung): Lock & Lift
    • (form_Aufsatzstueck):
    • Contents of sludge trap (schlammeimer): yes
