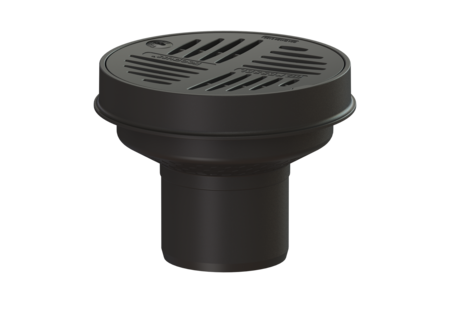

Yard drain

System 100, vertical, round, B 125

67111B
PDF product data sheet

KESSEL Yard drain, System 100, nominal size (DN) 100, load class B 125, drainage by Point drain, socket vertical, shape of upper section round, drain body Polymer, upper section material Ecoguss

  • Recyclable
  • Fulfils highest sound protection requirements
  • Temperature-resistant up to 400 degrees Celsius
Item no. 67111B
GTIN 4026092039380
Price group 10

    Yard drain System 100, vertical, round, B 125
    The Ecoguss yard drain is used for point drainage and is equipped with a sludge bucket. The recyclable composite material, Ecoguss fulfils the highest sound protection requirements, can withstand temperatures up to 400 degrees Celsius and has a permanently corrosion-free surface. The outlet socket is suitable for connection to polymer pipes. Separate equipotential bonding is not necessary. Variant System: 100 Contents of sludge trap: yes General characteristics Nominal size (DN): 100 Odour trap: no Dimensions Net weight: 2,33 kg Gross weight: 2,71 kg Packaging dimension: length: 340 mm Packaging dimension: width: 340 mm Packaging dimension: height: 215 mm Tank/drain body Number of outlets: 1 Material of drain body: Polymer Socket version: vertical Coverage features Type of cover: Round slotted cover Cover material: Ecoguss Colour of cover: black Width of cover: 247 mm Length of cover: 247 mm Surface: EDM Locking: Lock & Lift Load class: B 125 (EN 124) Shape of upper section: round Upper section material: Ecoguss Contents of sludge trap: yes
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    67007 Locking key for Ecoguss slotted gratings,Lock & Lift 67007 Show
    680216 Slotted cover Ecoguss, d: 235 mm, B 125 680216 Show
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): Polymer
    • Cover material (abdeckung_material): Ecoguss
    • Upper section material (material_aufsatzstueck): Ecoguss
    • Socket version (stutzen_ausfuehrung): vertical
    • Type of cover (abdeckungsart): Round slotted cover
    • Load class (belastungsklasse): B 125 (EN 124)
    • Locking (verriegelung): Lock & Lift
    • Odour trap (geruchsverschluss): no
    • (form_Aufsatzstueck):
    • Contents of sludge trap (schlammeimer): yes
