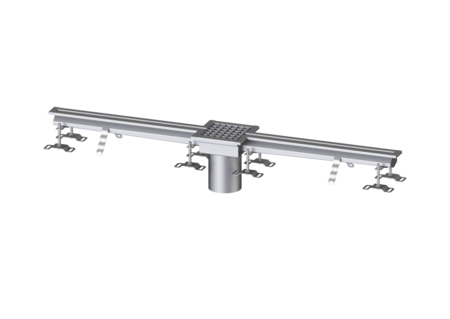

Slotted Channel Ferrofix
without glued flange, 17x1400mm, middle
KESSEL Slotted Channel Ferrofix, nominal size (DN) 125, waterproofing layer upper section by Connection flange, length 1400 mm, type of cover Slotted cover, position of inlet central, outside diameter (OD) 125 mm
- Made of particularly a hygienic and mechanically highly resistant stainless steel
- Variably combinable with suitable drain bodies
| Item no. | 6102140 |
|---|---|
| GTIN | 4026092099704 |
| Price group | 80 |
Slotted Channel Ferrofix without glued flange, 17x1400mm, middle
The Slotted Channel Ferrofix made of stainless steel with a material thickness of 2.0 mm (pickled in the immersion bath) is equipped with polished visible ridges, longitudinal and transverse slopes, feet for height adjustment and stainless steel outlet nozzles. Variant Waterproofing layer on the upper section: Connection flange Position of sink trap: central General characteristics Material: Stainless steel 14301 Nominal size (DN): 125 Outer diameter (OD): 125 mm Dimensions Length: 1400 mm Width: 17 mm Height: 75 mm Coverage features Type of cover: Slotted cover Colour of cover: silver Width of cover: 200 mm Length of cover: 200 mm Locking: placed Load class: L 15 (EN 1253-1) Slip resistance class: R12 according to DIN 51130; C according to DIN 51097 Slot width: 17 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Nominal size (DN) (nennweite):
125
- Material (material):
Stainless steel 14301
- Length (laenge): 1,400 mm
- Width (breite): 17 mm
- Load class (belastungsklasse): L 15 (EN 1253-1)
