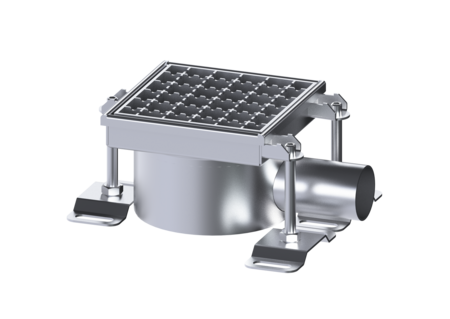

Ferrofix renovation drain

DN 50, horizontal, Slotted grating, L 15

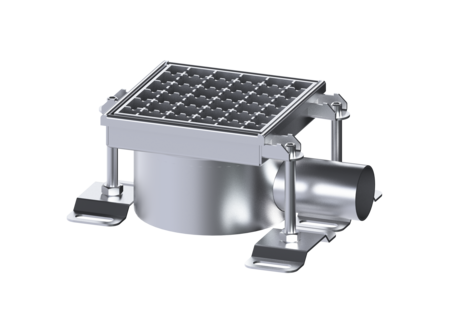

59305
59305
PDF product data sheet

KESSEL Ferrofix renovation drain, nominal size (DN) 50, socket lateral, cover length 138 mm, waterproofing layer upper section by Connection flange, type of cover Slotted cover

  • Made of particularly hygienic and mechanically highly resistant stainless steel
  • ideal for the food industry
  • catering kitchens and swimming pools
Item no. 59305
GTIN 4026092103012
Price group 70

    Ferrofix renovation drain DN 50, horizontal, Slotted grating, L 15
    The Ferrofix stainless steel renovation drain is equipped with a horizontal outlet DN 50 as well as a removable odour trap. Variant System: 125 Waterproofing layer on the upper section: Connection flange Sealing water height: 50 mm Discharge rate (l/s) with 20 mm backwater: 0,8 General characteristics Nominal size (DN): 50 Outer diameter (OD): 50 mm ATEX: no Odour trap: included Dimensions Net weight: 1 kg Gross weight: 3,1 kg Max. design height: 107 mm Length: 223 mm Width: 148 mm Height: 107 mm Packaging dimension: length: 254 mm Packaging dimension: width: 147 mm Packaging dimension: height: 100 mm Tank/drain body Number of outlets: 1 Material of drain body: Stainless steel 14301 Socket version: lateral Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Width of cover: 138 mm Length of cover: 138 mm Locking: unlocked Load class: L 15 (EN 1253-1) Rim width: 148 mm Rim length: 148 mm Upper section material: Stainless steel 14301
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Nominal size (DN) (nennweite): 50
    • Material of drain body (material_grundkoerper): Stainless steel 14301
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): Stainless steel 14301
    • Socket version (stutzen_ausfuehrung): lateral
    • Type of cover (abdeckungsart): Slotted cover
    • Length (laenge): 223  mm
    • Width (breite): 148  mm
    • Load class (belastungsklasse): L 15 (EN 1253-1)
    • (oberflaeche):
