Ferrofix cleanout
Sys 125, Gl fl., Hyg., screwed
![](https://assets.kessel.de/pb/640/pb_wgablau_59014_373876.png)
![](https://assets.kessel.de/mz/w640/mz_59014_373874.png)

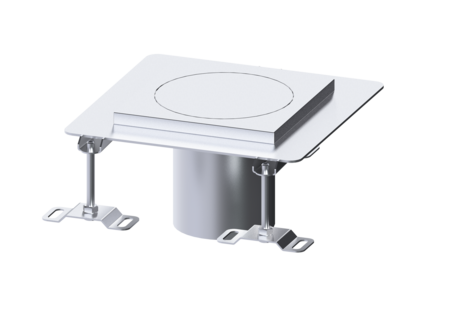

KESSEL Ferrofix cleanout, load class L 15, waterproofing layer upper section by, length 250 mm, length 150 mm, width 150 mm, type of cover Hygiene upper section, locking screwed
- Made of a particularly hygienic and mechanically highly resistant stainless steel
Item no. | 59014 |
---|---|
GTIN | 4026092103586 |
Price group | 70 |
Ferrofix cleanout Sys 125, Gl fl., Hyg., screwed
The Ferrofix cleanout made of 304 grade stainless steel serves as an upper section for direct connection on pipes. It is equipped with a closed cover plate. Variant System: 125 Dimensions Net weight: 4 kg Gross weight: 4,3 kg Length: 250 mm Width: 250 mm Height: 100 mm Packaging dimension: length: 250 mm Packaging dimension: width: 250 mm Packaging dimension: height: 100 mm Coverage features Type of cover: Hygiene upper section Cover material: Stainless steel 14301 Height of cover: 15 mm Locking: screwed Load class: L 15 (EN 1253-1) Tightness: gastight and liquid-tight Rim width: 150 mm Rim length: 150 mm Upper section material: Stainless steel 14301
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
Manuals | |
---|---|
CAD Data |
- Cover material (abdeckung_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
- Type of cover (abdeckungsart): Hygiene upper section
- Load class (belastungsklasse): L 15 (EN 1253-1)
- Locking (verriegelung): screwed
- Waterproofing layer on the upper section (abdichtung_aufsatzstueck):
