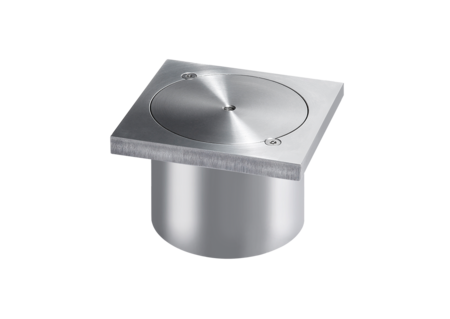

Upper section 150x150 gastight hygienic
KESSEL, surface, length 150 mm, width 150 mm, waterproofing layer upper section by, type of cover Hygiene upper section, Cover Stainless steel 14301, locking screwed
| Item no. | 59013 |
|---|---|
| GTIN | 4026092103470 |
| Price group | 70 |
Variant System: 125 General characteristics ATEX: no Dimensions Net weight: 3 kg Gross weight: 3,1 kg Length: 150 mm Width: 150 mm Height: 100 mm Packaging dimension: length: 150 mm Packaging dimension: width: 150 mm Packaging dimension: height: 100 mm Coverage features Type of cover: Hygiene upper section Cover material: Stainless steel 14301 Height of cover: 15 mm Locking: screwed Load class: L 15 (EN 1253-1) Tightness: gastight and liquid-tight Rim width: 150 mm Rim length: 150 mm Upper section material: Stainless steel 14301
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Cover material (abdeckung_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
- Type of cover (abdeckungsart): Hygiene upper section
- Load class (belastungsklasse): L 15 (EN 1253-1)
- Locking (verriegelung): screwed
- Waterproofing layer on the upper section (abdichtung_aufsatzstueck):
