Ferrofix upper section

Sys 200, Inlet rg, 304 SST, 300 x 300 mm

57435
PDF product data sheet

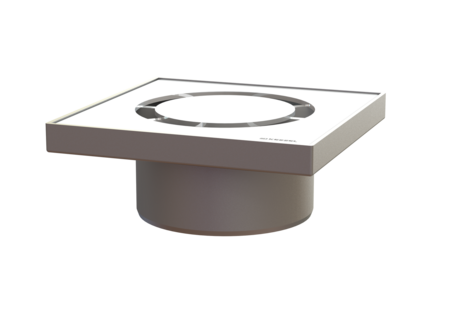

KESSEL Ferrofix upper section, height 112 mm, length 300 mm, width 300 mm, type of cover Cover plate with ring drain, locking unlocked

  • Made of a particularly hygienic and mechanically highly resistant stainless steel
  • Multiple combinations with suitable drain bodies.
Item no. 57435
GTIN 4026092007648
Price group 70

    Ferrofix upper section Sys 200, Inlet rg, 304 SST, 300 x 300 mm
    Used in combination with a drain body of the KESSEL modular system 200, the stainless steel upper section is suitable for indoor point drainage. Variant System: 200 General characteristics ATEX: no Dimensions Net weight: 8,92 kg Gross weight: 9,43 kg Height: 112 mm Packaging dimension: length: 360 mm Packaging dimension: width: 360 mm Packaging dimension: height: 175 mm Coverage features Type of cover: Cover plate with ring drain Cover material: Stainless steel 14301 Height of cover: 30 mm Locking: unlocked Load class: M 125 (EN 1253-1) Rim width: 300 mm Rim length: 300 mm Upper section material: Stainless steel 14301
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    CAD Data
    Test Reports and Certificates
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): Stainless steel 14301
