Ferrofix upper section gl. flange
Sys 200, Ladd grt, 304 SST, 300 x 300 mm
![](https://assets.kessel.de/pb/640/pb_wgablau_57425-kf_343814.png)

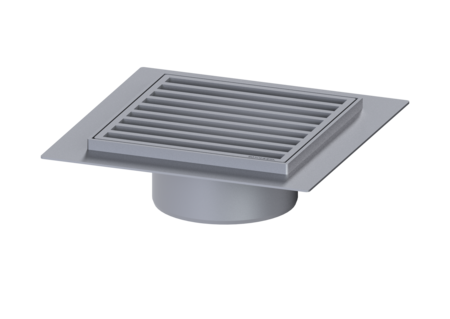

KESSEL Ferrofix upper section gl. flange, height 112 mm, length 300 mm, width 300 mm, type of cover Ladder grating, locking unlocked, design cover
- Made of a particularly hygienic and mechanically highly resistant stainless steel
- Multiple combinations with suitable drain bodies
Item no. | 57425-KF |
---|---|
GTIN | 4026092103005 |
Price group | 70 |
Ferrofix upper section gl. flange Sys 200, Ladd grt, 304 SST, 300 x 300 mm
Used in combination with a drain body of the KESSEL modular system 200, the Ferrofix stainless steel upper section with glued flange is suitable for indoor point drainage. Variant System: 200 Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I General characteristics ATEX: no Dimensions Net weight: 12 kg Gross weight: 13 kg Type of height adjustability: vertically adjustable upper section Length: 400 mm Width: 400 mm Height: 112 mm Packaging dimension: length: 400 mm Packaging dimension: width: 400 mm Packaging dimension: height: 120 mm Coverage features Type of cover: Ladder grating Cover material: Stainless steel 14301 Height of cover: 15 mm Locking: unlocked Load class: L 15 (EN 1253-1) Rim width: 300 mm Rim length: 300 mm Upper section material: Stainless steel 14301
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
CAD Data |
---|
- Cover material (abdeckung_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
