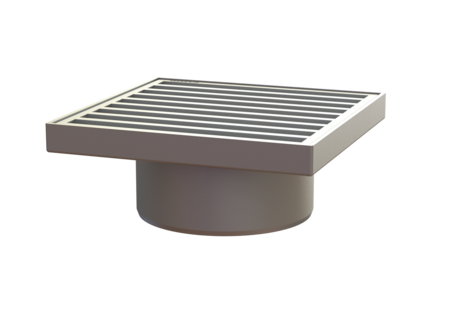

Ferrofix upper section

Sys 200, Ladd grt, 304 SST, 300 x 300 mm

57425

KESSEL Ferrofix upper section, height 112 mm, length 300 mm, width 300 mm, type of cover Ladder grating, locking unlocked

  • Made of a particularly hygienic and mechanically highly resistant stainless steel
  • Multiple combinations with suitable drain bodies.
Item no. 57425
GTIN 4026092010488
Price group 70

    Ferrofix upper section Sys 200, Ladd grt, 304 SST, 300 x 300 mm
    Used in combination with a drain body of the KESSEL modular system 200, the stainless steel upper section is suitable for indoor point drainage. Variant System: 200 General characteristics ATEX: no Dimensions Net weight: 10,08 kg Gross weight: 10,59 kg Height: 112 mm Packaging dimension: length: 360 mm Packaging dimension: width: 360 mm Packaging dimension: height: 175 mm Coverage features Type of cover: Ladder grating Cover material: Stainless steel 14301 Height of cover: 30 mm Surface: pickled Locking: unlocked Load class: M 125 (EN 1253-1) Rim width: 300 mm Rim length: 300 mm Shape of upper section: square Upper section material: Stainless steel 14301
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    CAD Data
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): Stainless steel 14301
